SignaTouch 5" Recessed Control

• Touchscreen Display: 5" LCD with full color (480 x 800 resolution)
• Smart Control: Manages steam, lights, water flow, temperature, and audio
• User Profiles: Two custom user settings and memory recall
• Flexible Mounting: Can be installed vertically or horizontally
• Bluetooth Enabled: Syncs with Serenity Light and Sound systems
• Construction: Durable acrylic, recessed for a modern finish
• Dimensions: 5.7" W x 1.25" D x 4.8" H

Digital Shower Valve

• Precision Engineering: Ceramic disc Fluhs with dual stepper motors
• Streamlined Look: Eliminates need for exposed trims
• Flexible Install: Mount up to 30 feet from the shower
• 3 Outputs: Easily control multiple water outlets

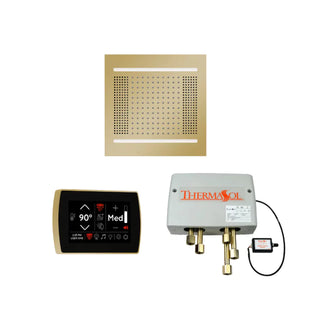

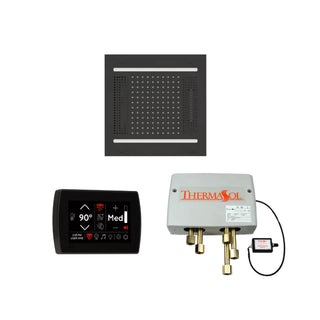

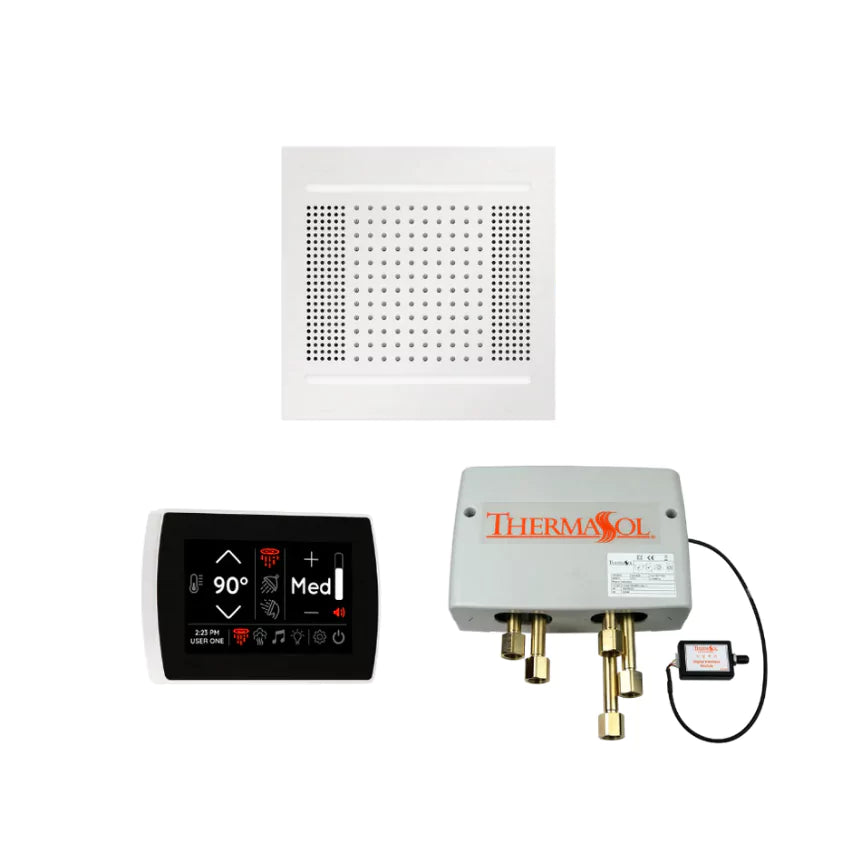

HydroVive 14 Rainhead

• Integrated Wellness: Lighting, sound, and rain system in one unit
• LED Therapy: 84 full-spectrum RGBW LEDs with preset chromatherapy scenes
• Immersive Audio: Built-in 100W amp, subwoofer, and Bluetooth streaming
• Rainfall Sensation: 120 jets with 1.8 GPM flow rate
• Personalized Sound Settings: Control treble, bass, volume, and more

• Model: WH14SPSS
• Control: SignaTouch, Recessed Square
• Construction: Acrylic
• Display: 5" Capacitive Touch, 16.7M Colors
• Installation: In-shower, vertical or horizontal
• Shipping Weight: 1.25 lbs

Power Distribution Module

• Material: ABS Plastic
• Power Supply: UL Listed Class 2 & 11
• Operating Voltage: 24V DC, 60 Watt


Digital Shower Valve

• Inlets: 2 x 1/2" FNPT
• Outlets: 3 x 1/2" FNPT
• Power: 110VAC Input / 15VDC Output
• Dimensions: 11" W x 3" D x 7" H
• Weight: 10.65 lbs


HydroVive 14 Rainhead

• Material: Machined Brass
• Lighting: 200 full-color RGBW LEDs
• Audio: 100W RMS, Digital Signal Processor,
• Bluetooth v4.2
• Water Jets: 300 neoprene jets
• Water Flow: 1.8 GPM @ 40–80 PSI
• Dimensions: 14" W x 14" H x 8" D
• Weight: 22 lbs
• CEC Approved: Yes
