We view 12 kW and high-capacity heaters as the definitive thermal solution for expansive residential cabins and rigorous commercial environments, providing the sustained power required for spaces up to 1,200 cubic feet. These professional-grade units are engineered to manage the intensive duty cycles of health clubs and hotels, utilizing industrial-grade stainless steel elements and high-mass stone chambers to ensure rapid heat-up and massive steam production. Our collection features elite systems from Harvia, Homecraft, and Saunacore, representing the pinnacle of Finnish and Canadian engineering for high-traffic wellness facilities.
- Commercial-Scale Power: We prioritize 12 kW to 18 kW units for rooms exceeding 500 cubic feet because they are technically sized to maintain therapeutic 180°F–195°F temperatures under the stress of high-frequency door usage.
- Industrial Durability: We focus on heaters utilizing heavy-duty stainless steel both inside and out, which we have verified provides the corrosion resistance required for 18+ hours of daily operation in public spas.
- Massive Thermal Storage: Our collection includes floor-standing models like the Legend and Club series that can hold up to 450 lbs of stones, creating the deep, enveloping steam preferred by traditionalists.
- Technical Versatility: We offer high-wattage units compatible with both residential 240V single-phase and commercial 208V three-phase electrical infrastructures, allowing for a professional-grade experience in any facility.
Professional Engineering and High-Load Thermal Safety
Optimizing a high-wattage installation requires precise circuit sizing and a focus on industrial-grade electrical components. We have compiled these expert answers to ensure your professional-grade heater delivers a safe and consistent wellness experience.
What size breaker is required for a 12kW sauna heater?
A 12kW heater pulls 50 Amps at 240V. Per the National Electrical Code (NEC), we require the use of a 70-amp double-pole breaker to safely accommodate the 125 percent continuous load requirement for high-wattage sauna equipment.
What wire gauge is required for a 12kW heater?
You must use 4-gauge copper wire, typically 4/2 or 4/3. We emphasize that using 6-gauge wire for a 12kW heater can lead to hazardous heat buildup and significant voltage drop over long electrical runs, which reduces heating efficiency.
Can a 12kW heater run on standard residential single-phase power?
Yes. Most of our 12kW models are available in 240V single-phase configurations for large luxury homes. However, we suggest verifying that your main electrical panel has at least 200-amp or 400-amp service to accommodate such a substantial individual load safely.
Is 12kW better on 3-phase power for commercial buildings?
Yes. In a US commercial environment utilizing 208V 3-phase power, a 12kW heater draws approximately 33 Amps per phase. We find this puts significantly less stress on the building's infrastructure and allows for smaller 8 AWG wire sizing.
Why does a 12kW heater require an external contactor box?
At 12,000 watts, the electrical current exceeds the capacity of standard wall switches. We utilize heavy-duty external power controllers equipped with industrial magnetic contactors to safely bridge the power to the heater elements.
What is the maximum room size for a 12kW heater?
A 12kW unit is technically rated for large volumes ranging from 500 to 850 cubic feet. This capacity is ideal for 10-person to 12-person sauna rooms found in high-end gyms or professional wellness spas.
Can I use a 12kW heater in a room with three glass walls?
Yes. We view 12kW as the definitive solution for luxury glass-cube saunas. It provides the necessary thermal mass to effectively offset the massive heat loss occurring through multiple floor-to-ceiling glass panels.
Is 12kW too much for a backyard barrel sauna?
Almost always, yes. Unless the barrel exceeds 12 feet in length, we warn that a 12kW heater will cycle off too rapidly, leaving the lower benches cold while the air at the ceiling remains scorching.
What is the minimum ceiling height for a 12kW heater?
Most floor-standing 12kW units require a minimum ceiling height of 84 inches (7 feet). If the ceiling is lower, the concentrated heat plume will likely trip the internal safety sensors almost immediately.
Is 12kW suitable for "Public" use?

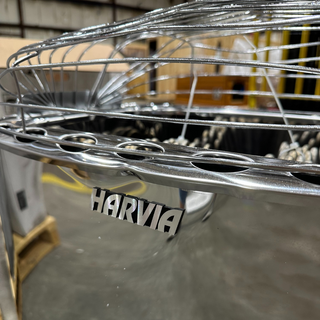

Yes. Models in this range, such as the Harvia Club or EOS Goliath, are specifically engineered with thicker stainless steel and reinforced incoloy elements designed to withstand 18 or more hours of daily operation.
How much does it cost to run a 12kW sauna per hour?
At an average US rate of $0.16 per kWh, a 12kW heater costs approximately $1.92 per hour of full-power operation. For commercial facilities running 12 hours daily, this can add $500 to $700 to the monthly utility bill.
Does a 12kW heater require a specialized HVAC vent?
Yes. At this power level, natural convection is often insufficient. We suggest installing a dedicated intake vent under the heater and a matching exhaust vent to ensure proper oxygen distribution and prevent stuffiness.
Will a 12kW heater increase my property tax in the US?
In most jurisdictions, a permanently wired 12kW sauna is considered a high-value home improvement. While unlikely to trigger a major reassessment on its own, we suggest disclosing the asset to your insurance provider.
Why are the terminal blocks melting on my 12kW heater?
This is a common failure in commercial settings. At 50 Amps, if the terminal screws are not re-tightened every six months, thermal vibration can cause arcing, which melts the plastic housing and damages the heater.
How many pounds of rocks does a 12kW heater need?
Commercial units typically hold between 130 lbs and 250 lbs of stones. We emphasize this high rock mass is necessary to produce enough steam for large groups and maintain thermal stability.
What is the "E-Link" or "Sync" mode for 12kW heaters?
For exceptionally large rooms, we utilize two 12kW heaters controlled by a single digital panel. Sync mode ensures both heaters operate in tandem to maintain a uniform temperature profile across the entire room.
Can I use 12kW for a "Commercial Steam" experience?
Yes. Many of our 12kW units are compatible with automated dosing systems that spray water on the stones at timed intervals, which we find is ideal for high-end public spas and banyas.
Why does my 12kW heater make a "ringing" sound?
This is typically element hum caused by the magnetic field of high-amperage current. While normal, we find it can be minimized by ensuring all heating elements are securely seated in their factory brackets.
How often should I replace elements in a 12kW gym sauna?
In high-traffic US gyms, we suggest replacing elements every 18 to 24 months as preventative maintenance. This avoids member downtime and ensures the heater remains efficient under heavy use.
Does a 12kW heater require a floor drain?
While the heater itself does not, US commercial building codes for large saunas often mandate a floor drain for sanitation and to manage the excess water from high-volume steam application.
