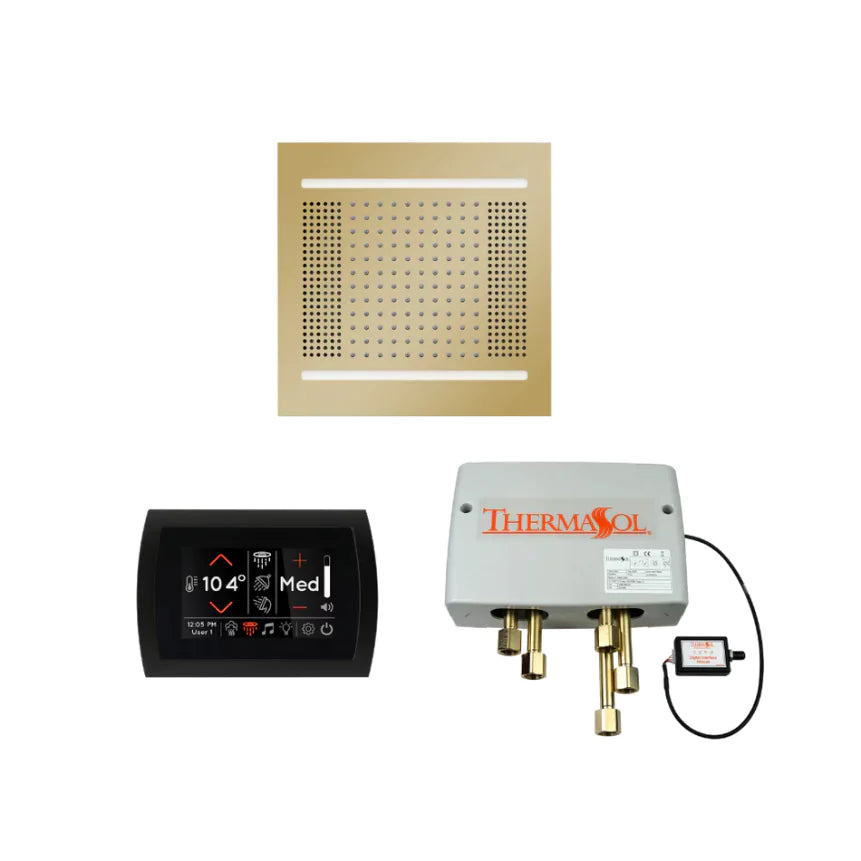

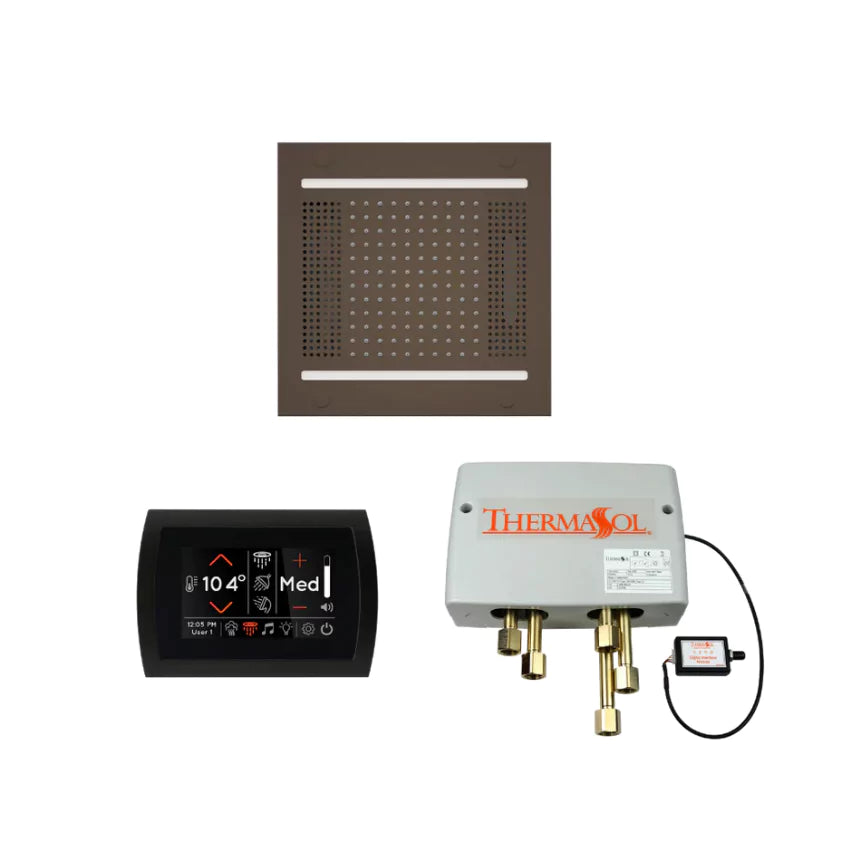

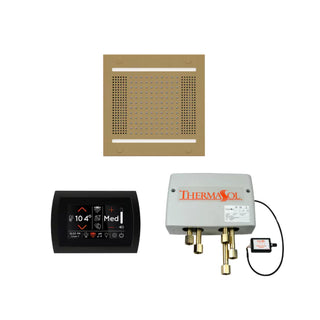

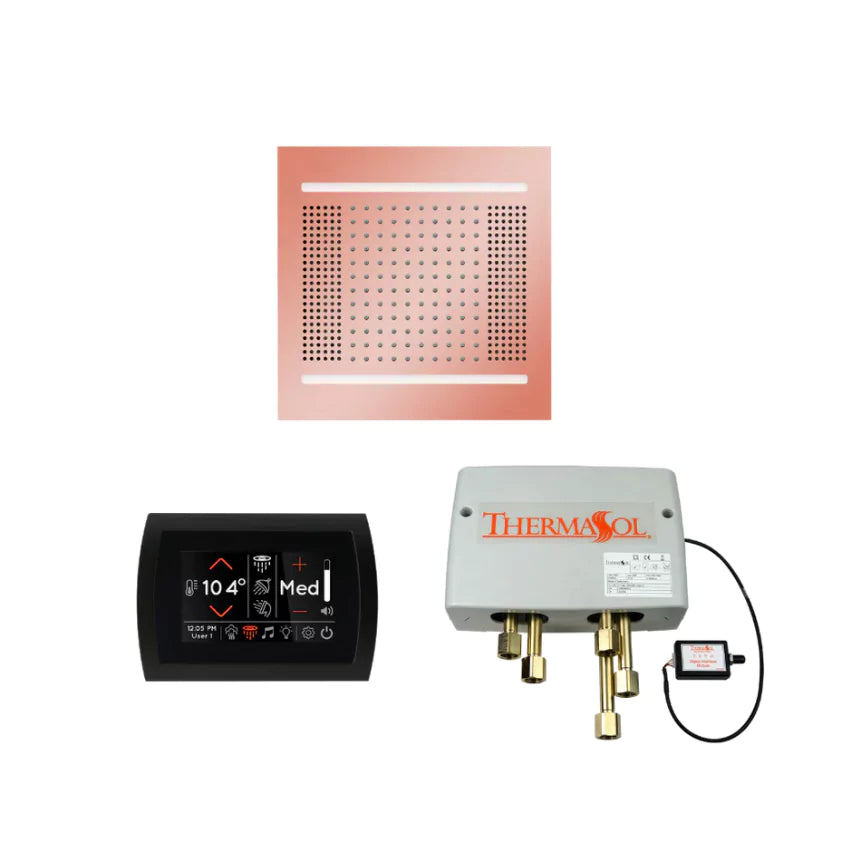

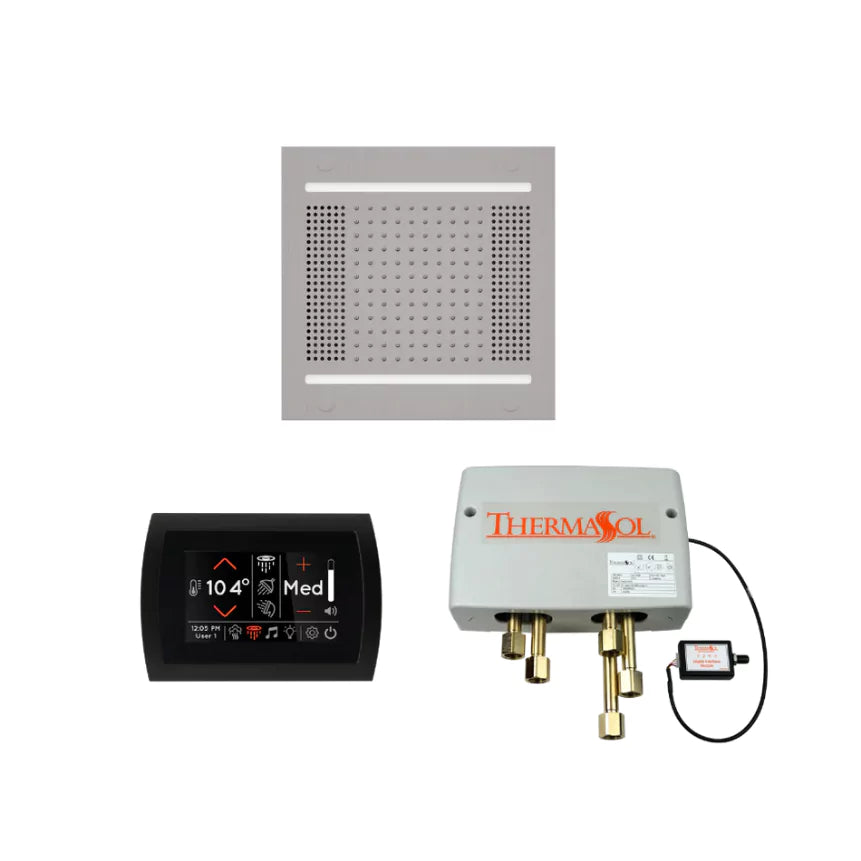

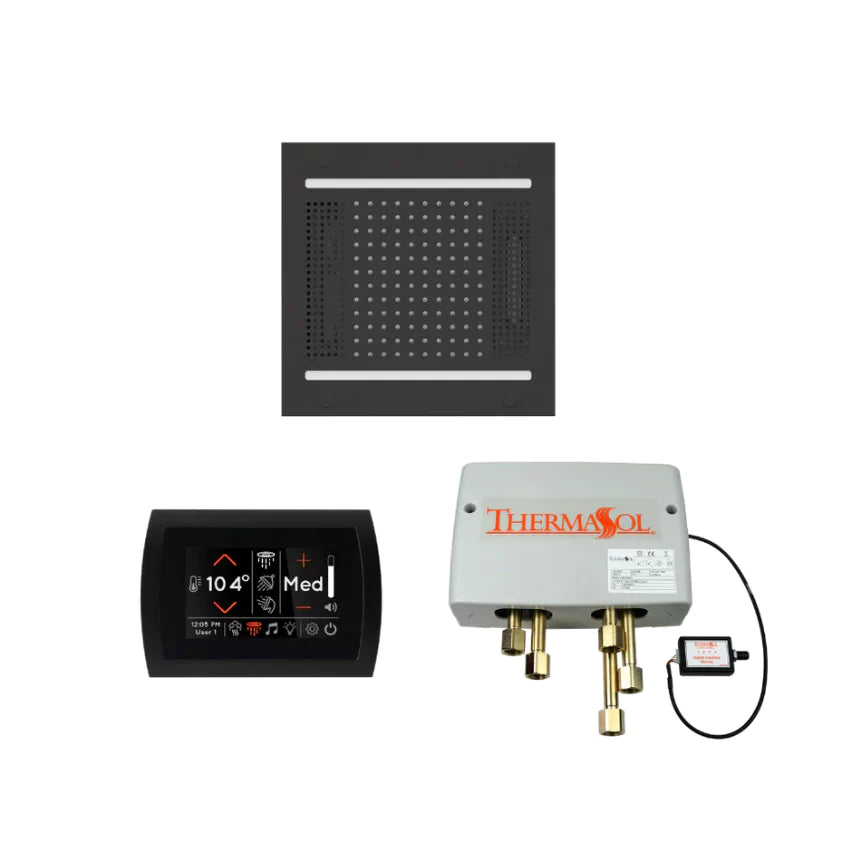

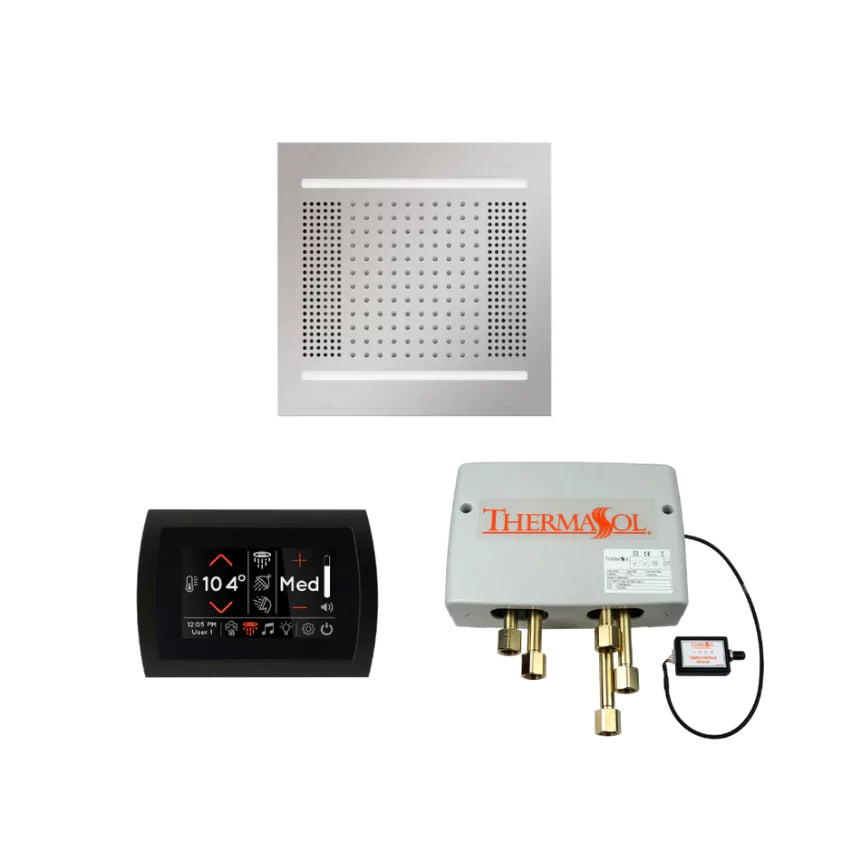

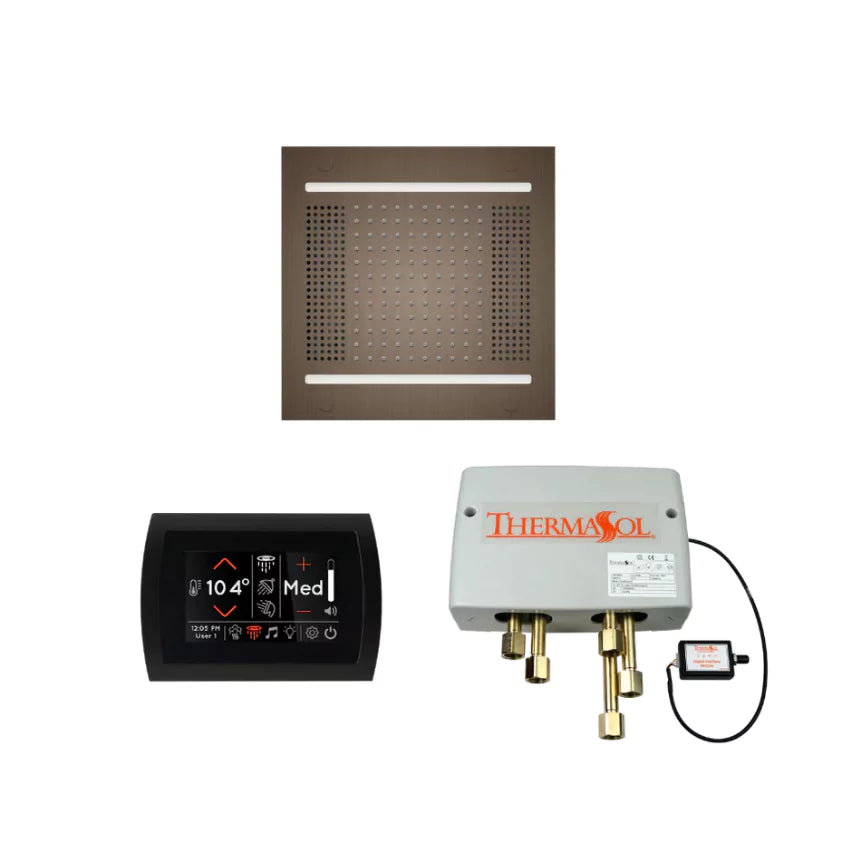

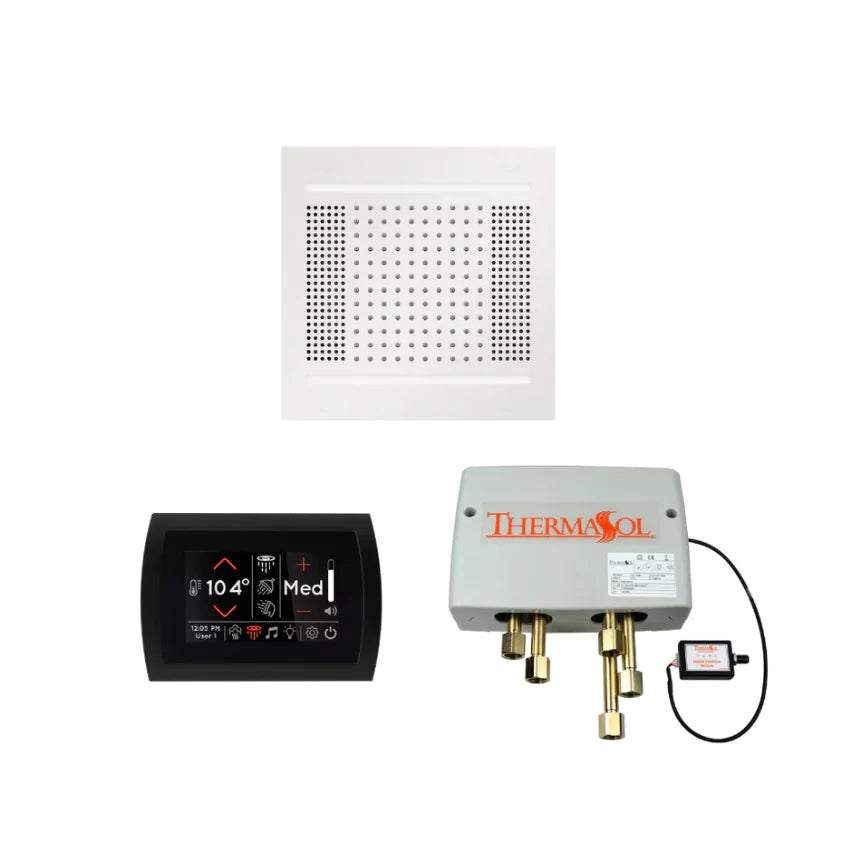

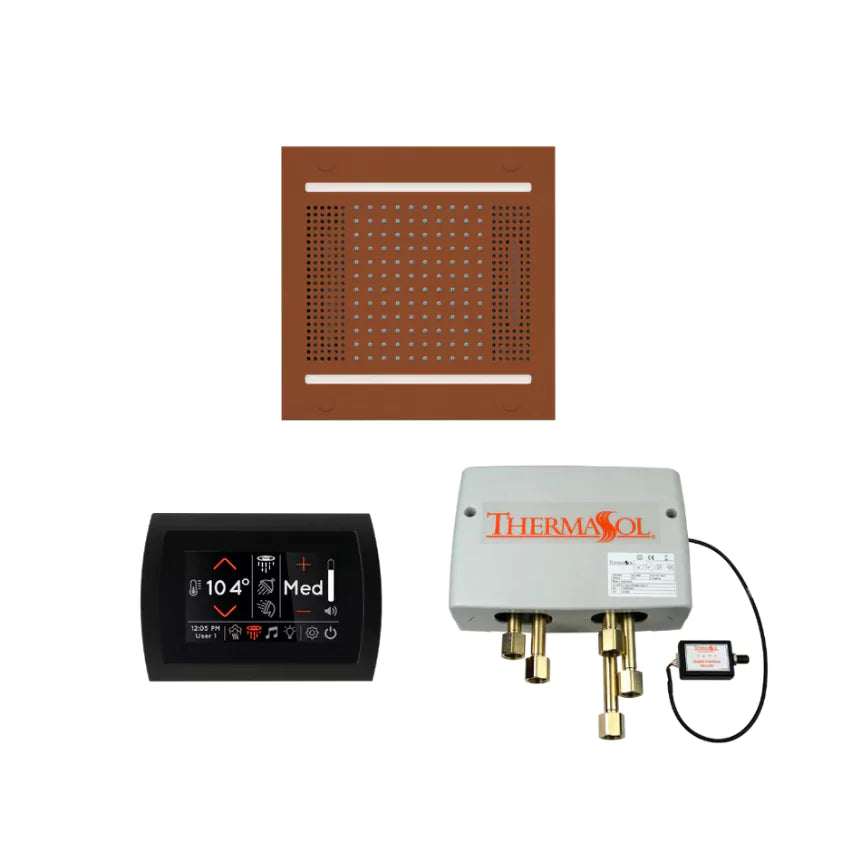

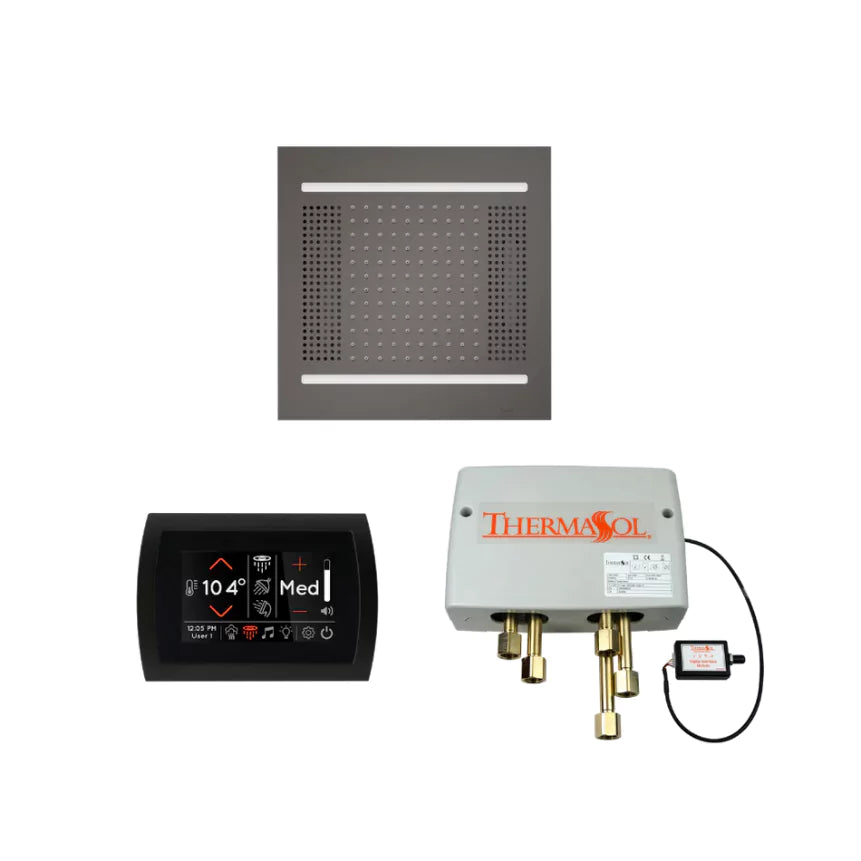

SignaTouch 5" Control

• Touchscreen Control: Manage water, steam, lighting, and music
• Flexible Mounting: Install vertically or horizontally
• Custom Profiles: Two customizable user settings and memory recall
• Smart Features: Steam time/temp control, Bluetooth audio, and date/time display
• Sleek Design: Modern recessed mount, available in multiple finishes


Digital Shower Valve

• Precision Engineering: Ceramic disc Fluhs with dual stepper motors
• Streamlined Look: Eliminates need for exposed trims
• Flexible Install: Mount up to 30 feet from the shower
• 3 Outputs: Easily control multiple water outlets


HydroVive 14 Rainhead

• Integrated Wellness: Lighting, sound, and rain system in one unit
• LED Therapy: 84 full-spectrum RGBW LEDs with preset chromatherapy scenes
• Immersive Audio: Built-in 100W amp, subwoofer, and Bluetooth streaming
• Rainfall Sensation: 120 jets with 1.8 GPM flow rate
• Personalized Sound Settings: Control treble, bass, volume, and more

Model: WH14SPSR
SignaTouch Control

• Construction: Acrylic
• Display: 5" Capacitive Touchscreen (480 x 800 resolution)
• Interface: Single Touch
• Dimensions: 5.7" W x 1.25" D x 4.8" H
• Shipping Weight: 1.25 lbs


Power Distribution Module

• Material: ABS Plastic
• Power Supply: UL Listed Class 2 & 11
• Operating Voltage: 24V DC, 60 Watt


Digital Shower Valve

• Inlets: 2 x 1/2" FNPT
• Outlets: 3 x 1/2" FNPT
• Power: 110VAC Input / 15VDC Output
• Dimensions: 11" W x 3" D x 7" H
• Weight: 10.65 lbs


HydroVive 14 Rainhead

• Material: Machined Brass
• Lighting: 200 full-color RGBW LEDs
• Audio: 100W RMS, Digital Signal Processor,
• Bluetooth v4.2
• Water Jets: 300 neoprene jets
• Water Flow: 1.8 GPM @ 40–80 PSI
• Dimensions: 14" W x 14" H x 8" D
• Weight: 22 lbs
• CEC Approved: Yes
