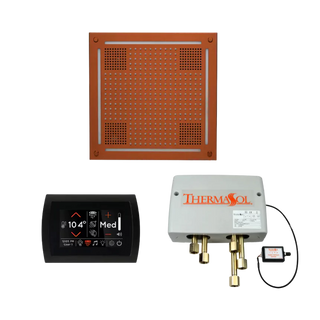

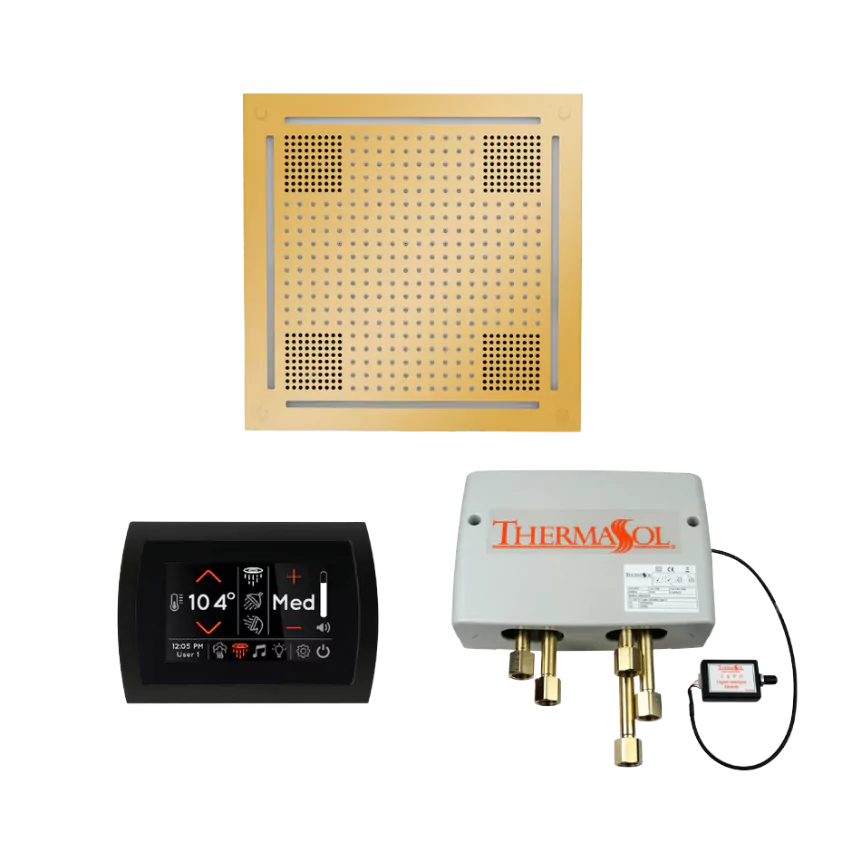

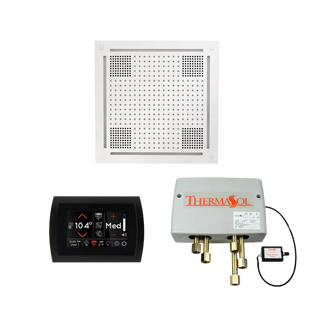

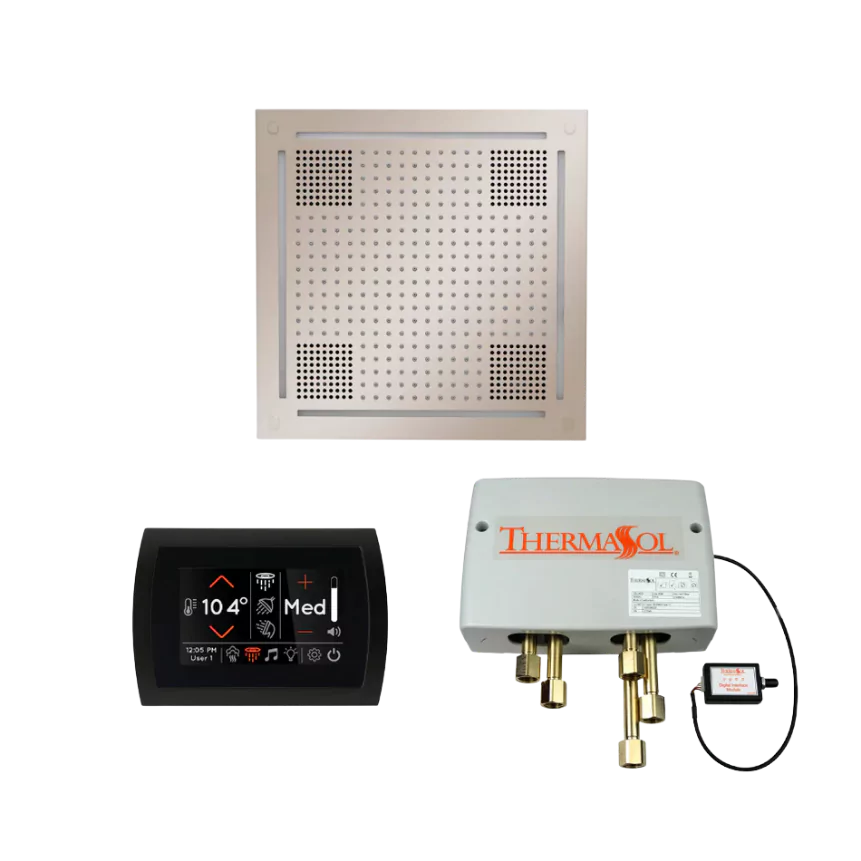

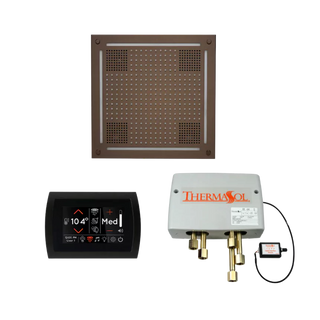

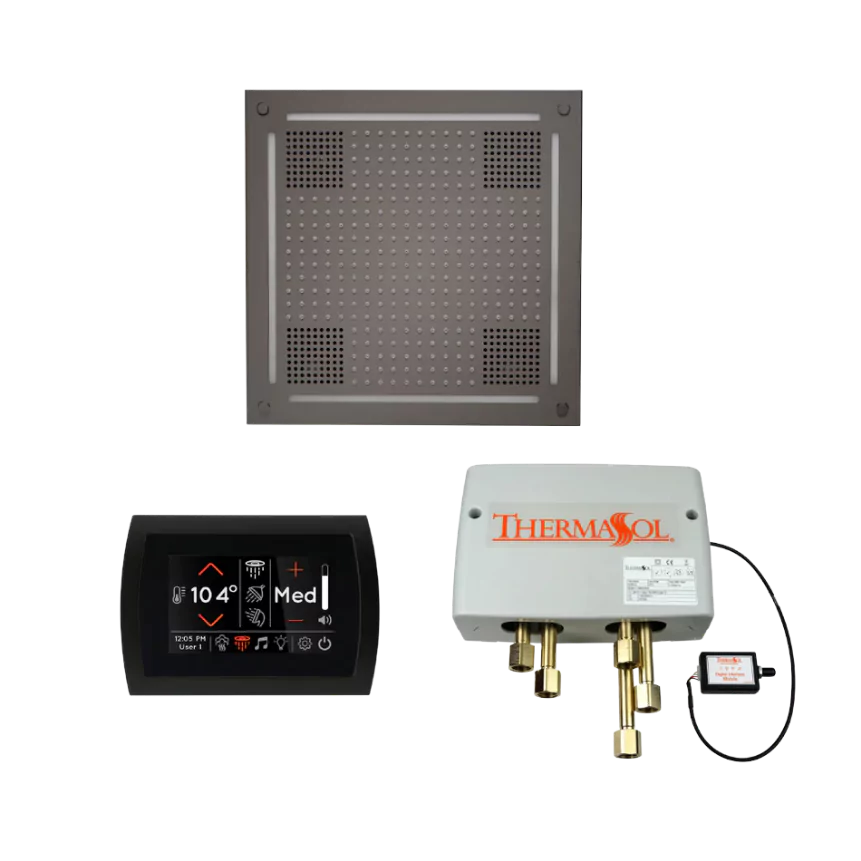

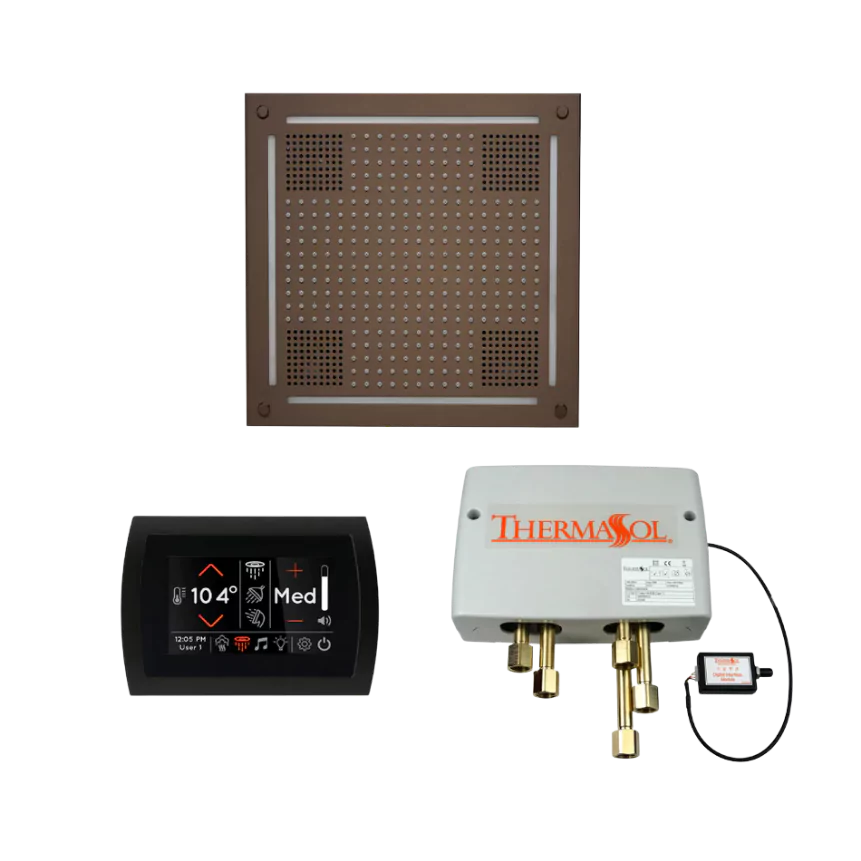

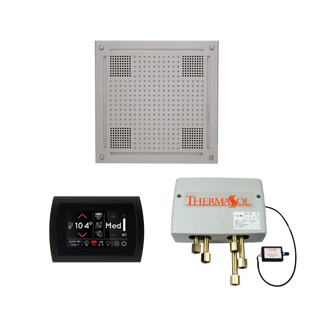

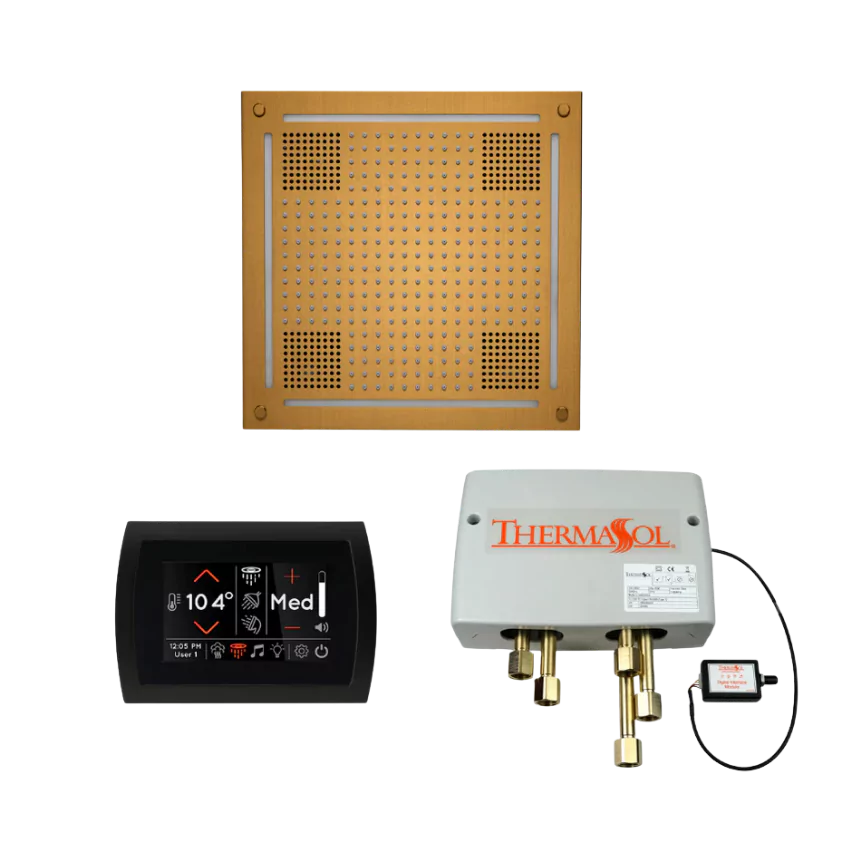

SignaTouch Control

• Touchscreen Interface: 5" full-color capacitive
• screen (480x800 resolution)
• Smart Control: Manage steam, temperature, lighting, music, and shower outputs
• Bluetooth Integration: Connect seamlessly to your favorite audio
• Flexible Mounting: Vertical or horizontal installation
• User Profiles: Save preferences for 2 users and a guest
• In-Shower Ready: Fully waterproof and built for wet environments

Digital Shower Valve

• Precision Control: Adjust water volume and temperature with pinpoint accuracy
• Stepper Motors: Dual motors offer 400 position settings
• Diverter Included: Seamlessly control multiple shower outlets
• Flexible Placement: Can be installed up to 30 feet from the shower

HydroVive 18 Rainhead

• Light & Sound: Full-spectrum LED lighting with mood and chromatherapy modes
• Immersive Audio: 100W RMS amp, DSP, Bluetooth v4.2, titanium tweeters & subwoofer
• Soothing Waterflow: 300 easy-clean jets, 1.8 GPM, 40–80 PSI
• Sleek Design: Ceiling-mounted, single self-contained unit
• Customizable: Complete control of audio, lighting, and rain settings

Model: WHSPSR

SignaTouch

• Construction: Acrylic
• Display: 5" capacitive touch screen
• Dimensions: 5.7" W x 4.8" H x 1.25" D
• Shipping Weight: 1.25 lbs

Power Distribution Module

• Material: ABS Plastic
• Voltage: 24V DC, 60W (UL Listed)

Digital Shower Valve

• Inlets: 2 (1/2" FNPT)
• Outlets: 3 (1/2" FNPT)
• Power Supply: 110VAC input, 15VDC output
• Dimensions: 11" W x 7" H x 3" D
• Shipping Weight: 10.65 lbs

HydroVive 18 Rainhead

• Material: Machined Brass
• Dimensions: 18" W x 18" H x 8" D
• Water: 3/8" supply, 1.8 GPM, 40–80 PSI
• Lighting: 200 full-color LEDs (1600 lumens max)
• Audio: 100W RMS amp, built-in Bluetooth, titanium dome tweeters, 4" woofer
• Weight: 37 lbs
• CEC Approved: Yes
