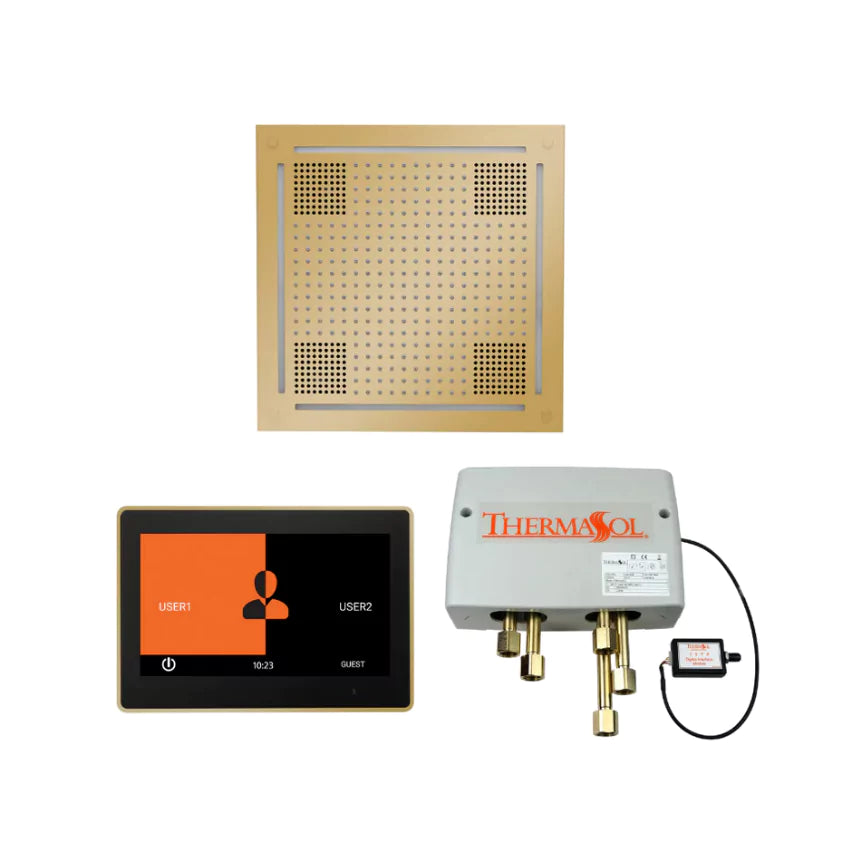

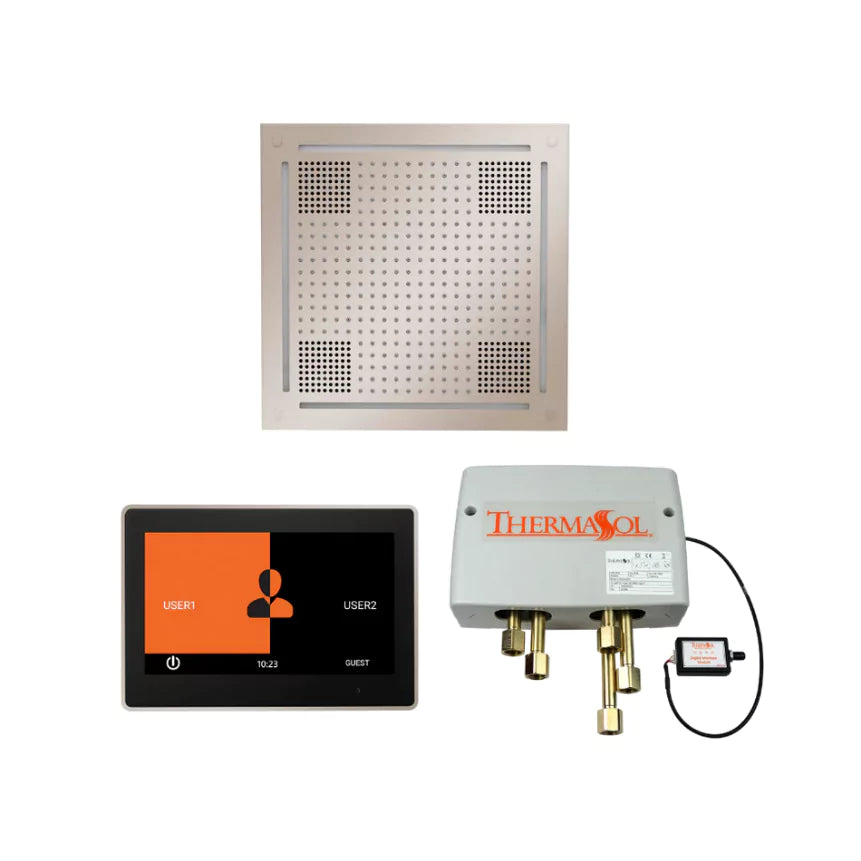

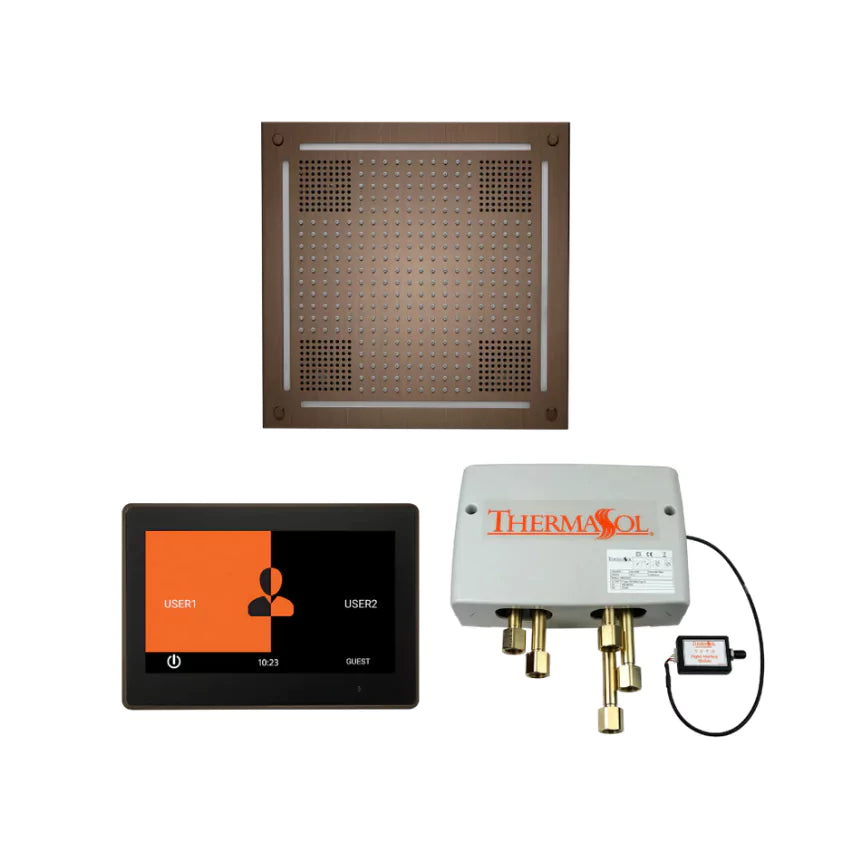

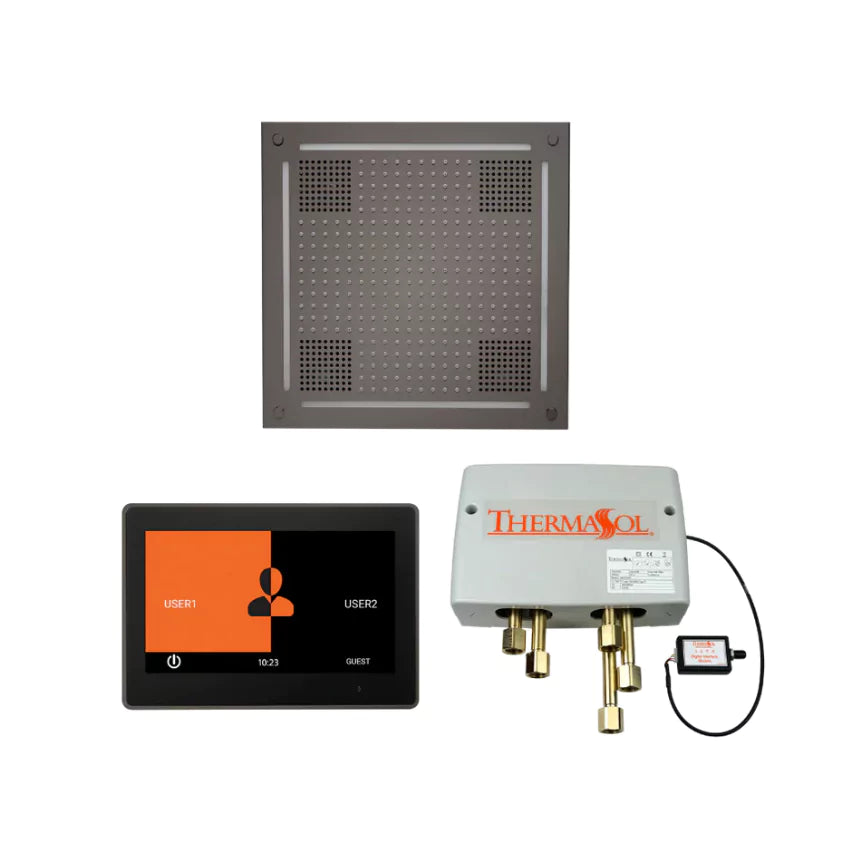

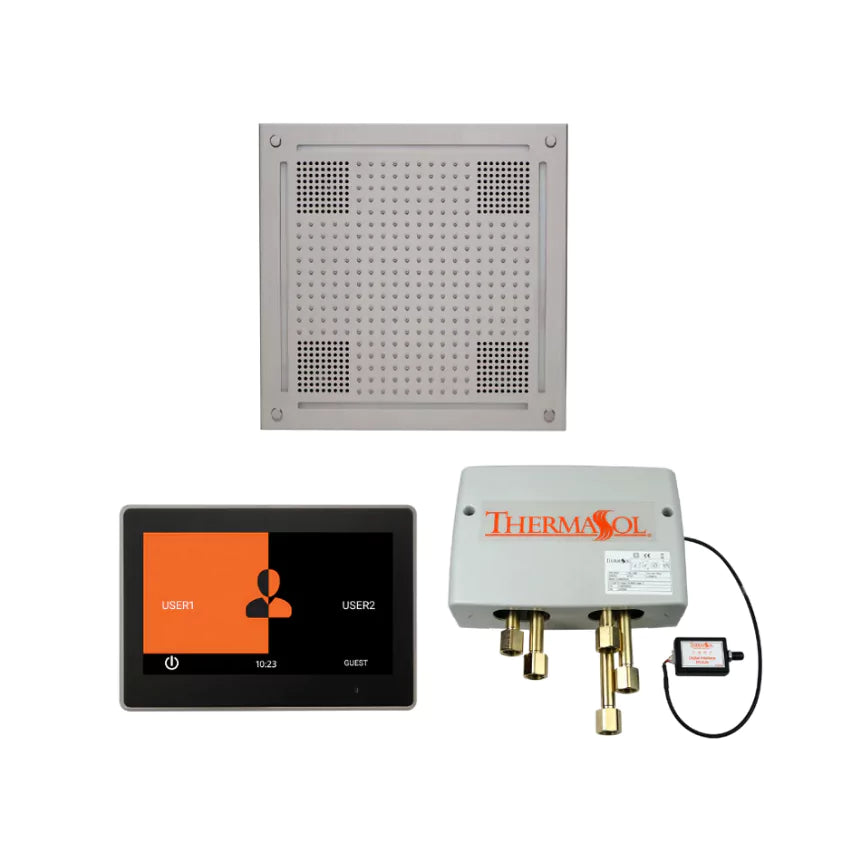

• Display Control: 10" HD touchscreen, Android-powered, Alexa-compatible
• Rainhead: High-intensity LED chromatherapy and surround sound audio via HydroVive 18
• Valve: Hidden Digital Shower Valve eliminates exposed hardware for a clean look
• Multimedia: Download apps for music, shows, and more
• Bluetooth: Built-in (v4.2 for rainhead, standard for control)
• Connectivity: WiFi + Ethernet
• Voice Control: Alexa integration
• Custom Profiles: 2 user presets
• Lighting: 200 full-spectrum LED mood lights
• Installation: Valve can be installed up to 30 ft away; control is waterproof for flexible placement
• Water Output: Up to 9.25 GPM at 45 PSI
• Warranty: 2 years (parts and labor)

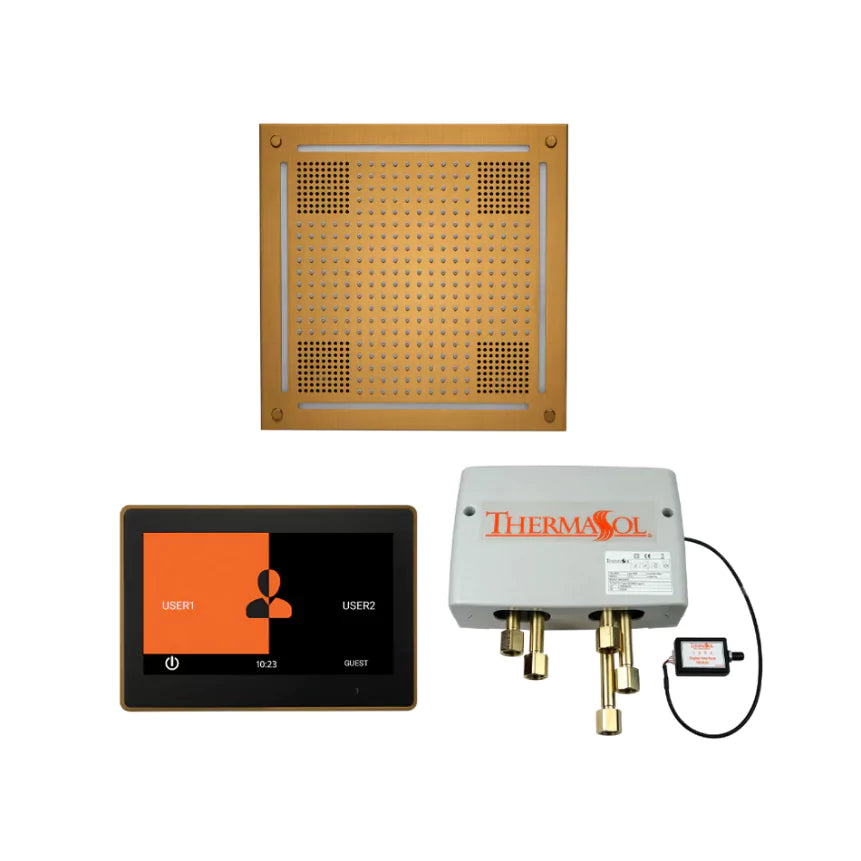

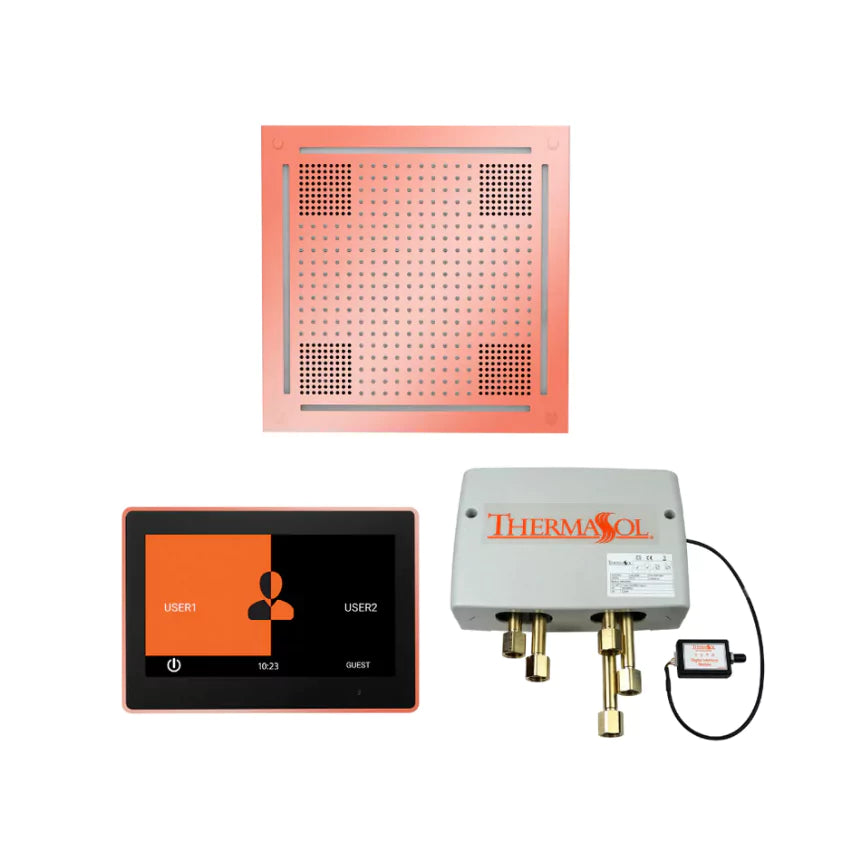

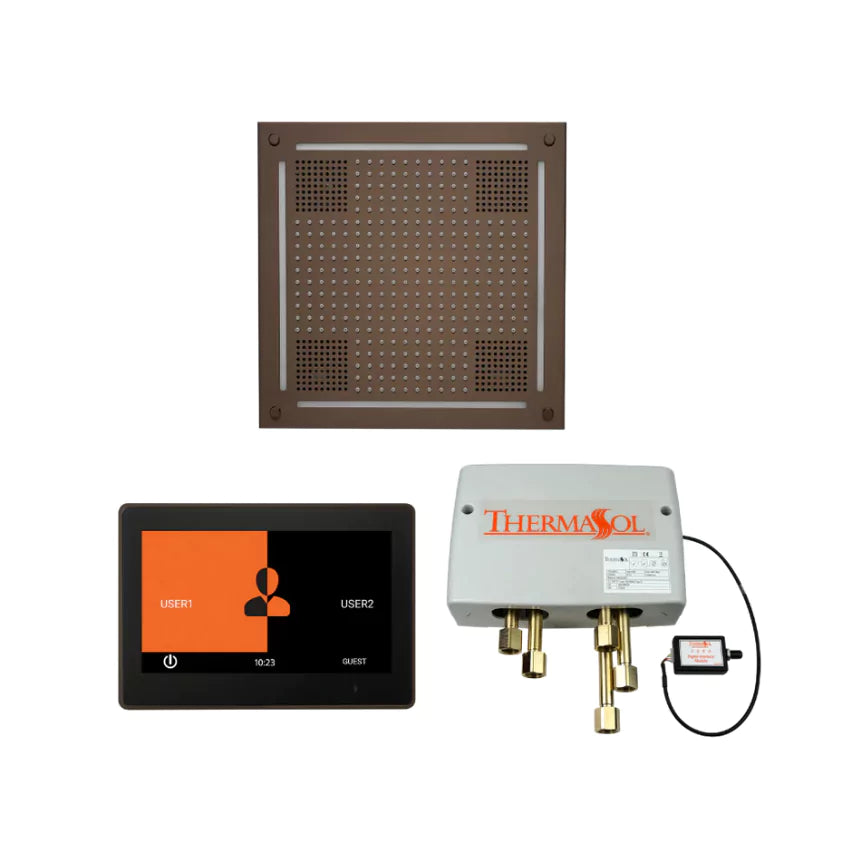

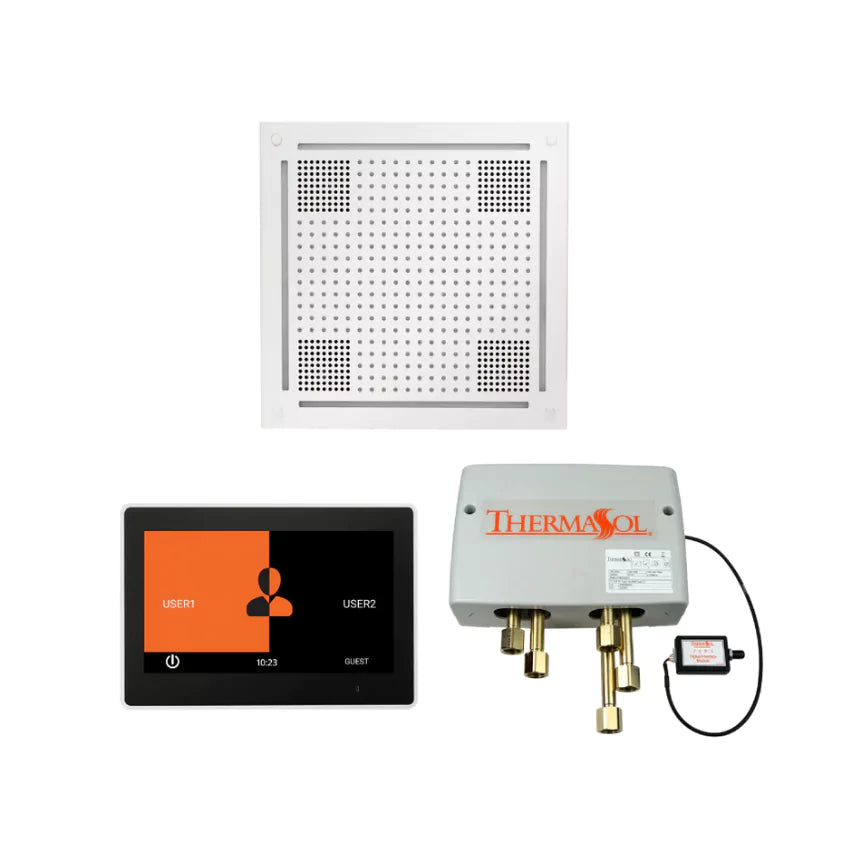

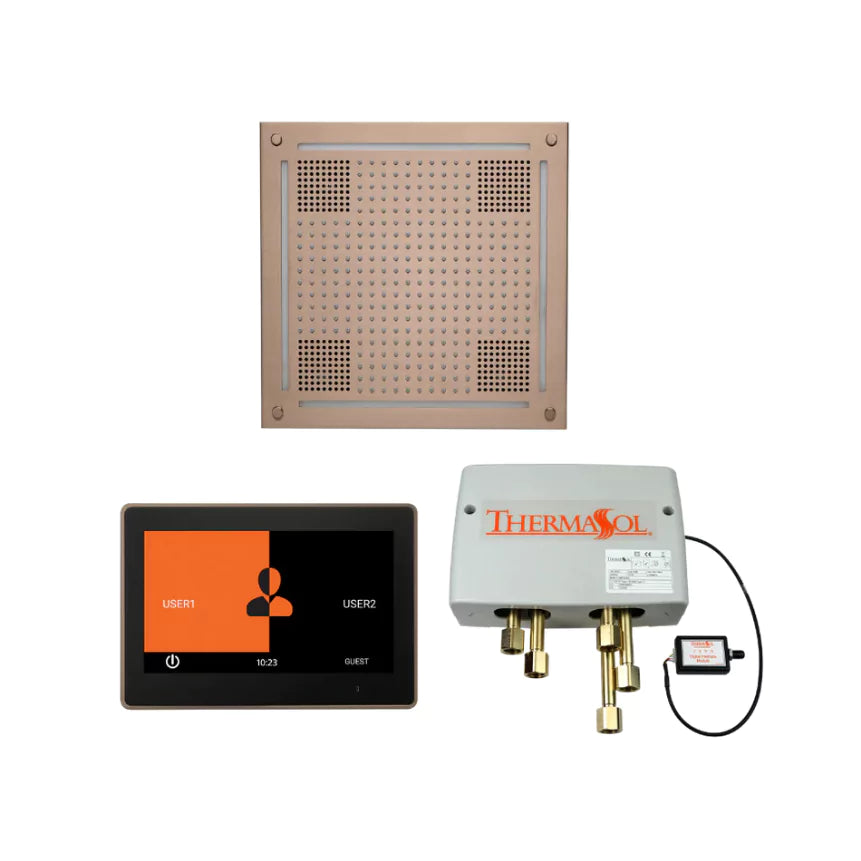

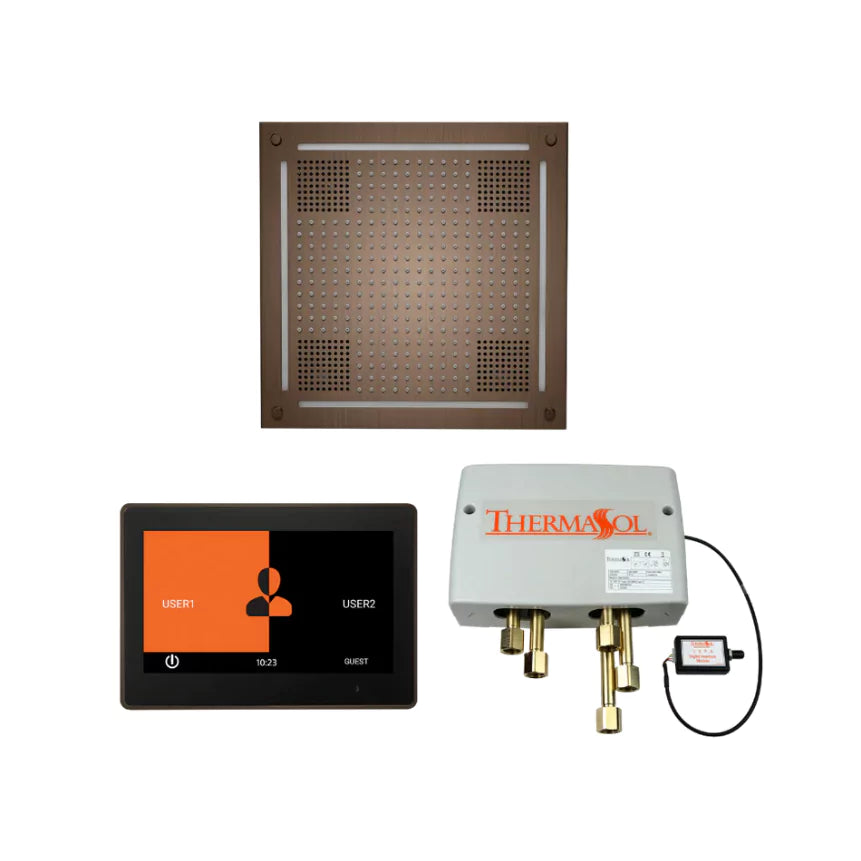

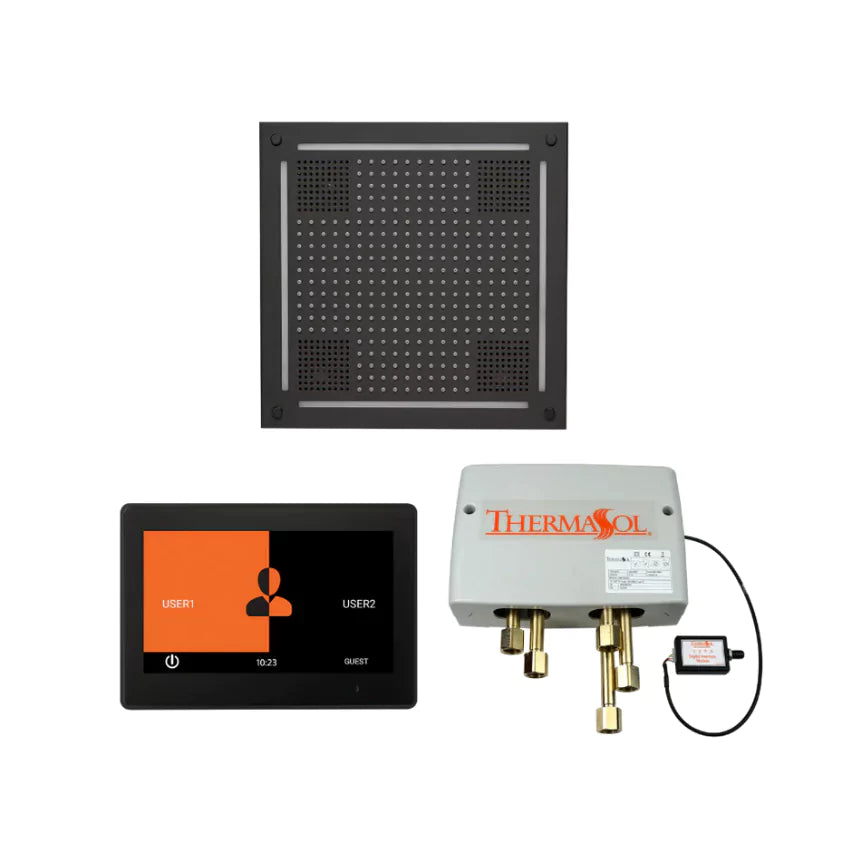

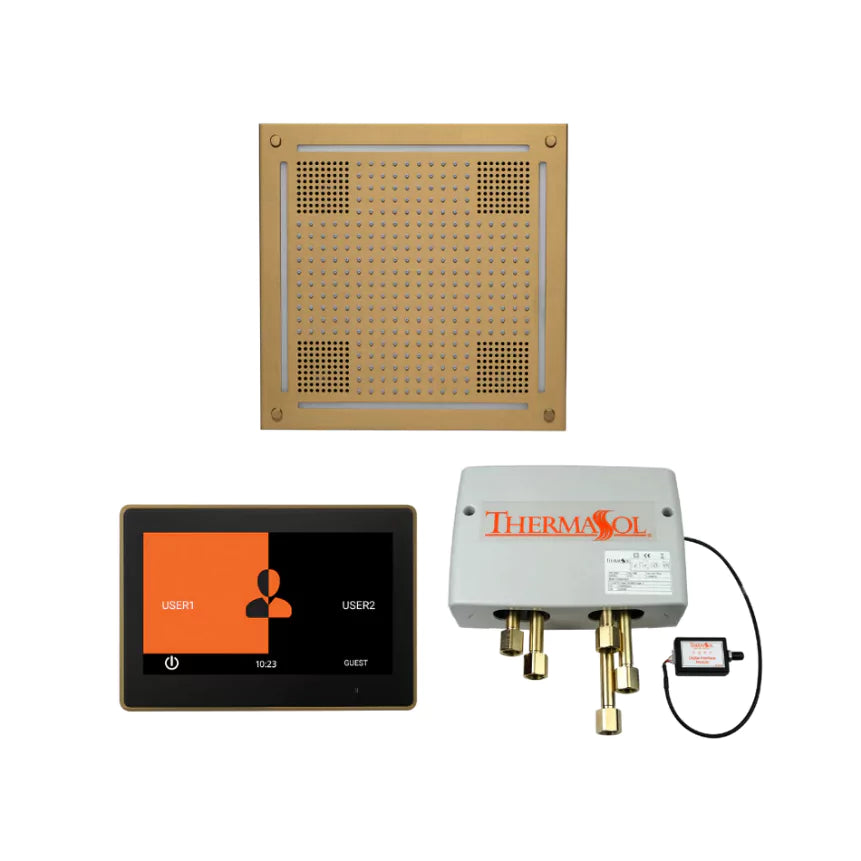

ThermaTouch2 10" Control

• Model: TT10
• Construction: Acrylic
• Display: 10" LCD HD Touchscreen
• Audio Output: Stereo (1/8" barrel jack)
• Operating System: Android™
• Connectivity: WiFi, Ethernet, Bluetooth
• Voice Assistant: Alexa-compatible
• User Settings: 2 customizable profiles
• Controls: Steam, lighting, audio, water fixtures, rainhead
• Waterproof Rating: Fully waterproof
• Dimensions:
  Width: 10.4"
  Height: 7.1"
  Depth: 2.3"
• Shipping Weight: ~9.25 lbs

ThermaSol Digital Shower Valve

• Model: Digital Shower Valve
• Water Connections:
  2 Inputs: 1/2" FNPT
  3 Outputs: 1/2" FNPT
• Power Supply:
  Input: 11VAC, 0.5 Amps
  Output: 15VDC, 3 Amps
• Features:
  Ceramic disc valves
  Concealed installation (up to 30 ft from shower)
  Backup battery included
• Dimensions:
  Width: 11"
  Height: 7"
  Depth: 3"
• Shipping Weight: 10.65 lbs

HydroVive 18 Light & Sound Rainhead

• Lighting:
  200 full-spectrum chromatherapy LEDs
  Adjustable color and brightness
• Audio:
  Integrated surround sound speakers
  Bluetooth v4.2 for direct device pairing
• Construction: High-grade aluminum and stainless steel
• Connection: Digital integration with ThermaTouch control
• Diameter: 18"
• Mounting: Flush ceiling mount
• Water Output: Up to 9.25 GPM at 45 PSI
