The Outdoor Sauna Control Enclosure Set for Main Module & Controller is recommended for outdoor sauna heater installations where both the main control module and digital controller need added protection from rain, dust, humidity, and splash exposure. This complete, sauna-specific solution gives your electrician a cleaner, faster way to protect critical electronics using properly sized enclosures and IP68-rated cable glands from the start. Instead of sourcing generic boxes and improvising cable entries with silicone, this set helps create a more organized and professional installation. It includes a large enclosure for the main module, power unit, or relay box, and a compact enclosure for the controller or keypad, keeping systems like Harvia Xenio, Harvia Fenix, HUUM UKU, and Homecraft controls properly separated and protected. Both lockable IP67-rated enclosures (lock not included) support neat low-voltage cable routing, while line-voltage wiring should use electrician-supplied liquid-tight conduit and connectors. Final weather resistance depends on the proper installation of glands and fittings.

Complete outdoor sauna protection system – Recommended for outdoor sauna heater installations, this coordinated set protects both the main control module and digital controller, giving your electrician the right enclosures and cable glands from the start for a cleaner, more professional setup.

IP67 enclosures + IP68 cable glands – Both enclosures are IP67-rated for dust-tight and water-resistant protection, and include IP68-rated compression cable glands for low-voltage wiring; tested to IEC 60529 and IEC 62262 with IK10 impact resistance and UL94-V0 flame-retardant material rating.

Saves time and avoids guesswork – Eliminates the need to source generic boxes and mismatched fittings on site, helping your electrician avoid improvised silicone-sealed cable entries while streamlining installation with properly matched components designed for sauna control systems.

Separation of control and power – Dedicated enclosures for controller wiring and main power modules help organize installations, reduce interference risk, and support cleaner routing of low-voltage and line-voltage components for a more structured, professional result.

Professional cable management system – Includes 6 × NPT 3/8 IP68 cable glands (4 for main module, 2 for controller) sized for low-voltage cable entries, providing secure, strain-relieved routing without relying on unreliable sealants in outdoor environments.

Durable polycarbonate construction – Built from high-strength polycarbonate, both enclosures resist UV exposure, corrosion, and impact while remaining lightweight, making them ideal for long-term outdoor sauna use without the weight and drawbacks of metal boxes.

Wide system compatibility – Works with common sauna control systems including Harvia Xenio, Harvia Fenix, HUUM UKU, and Homecraft setups, supporting protection for digital controllers, keypads, sensors, and related low-voltage wiring components.

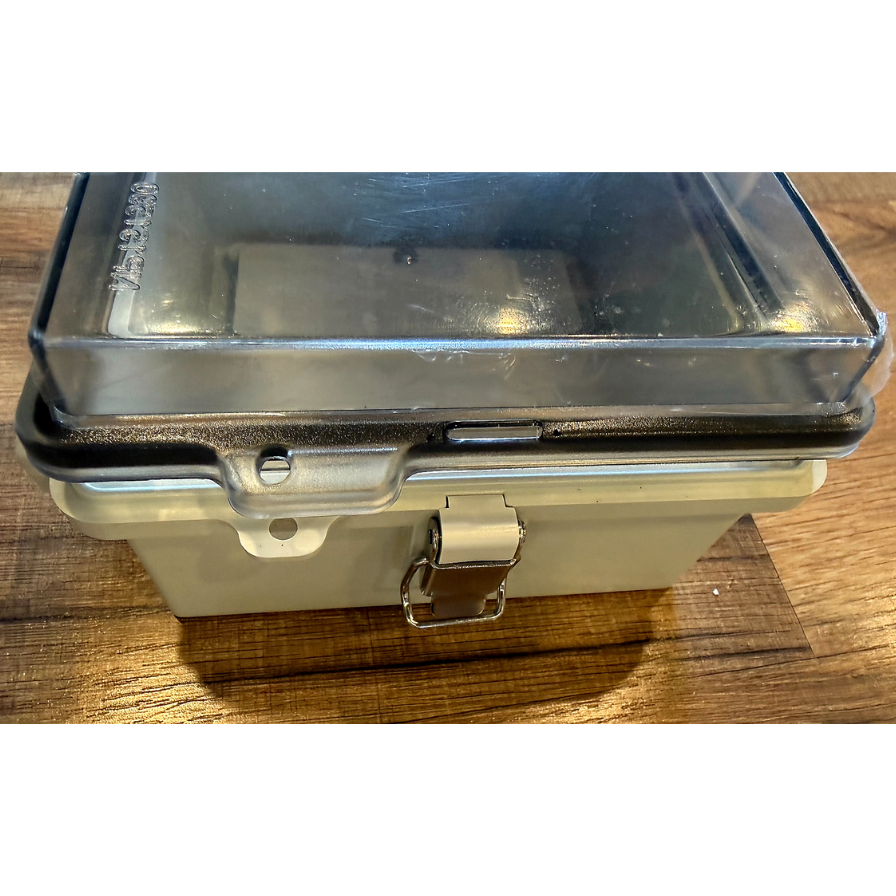

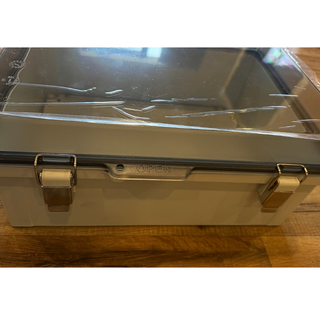

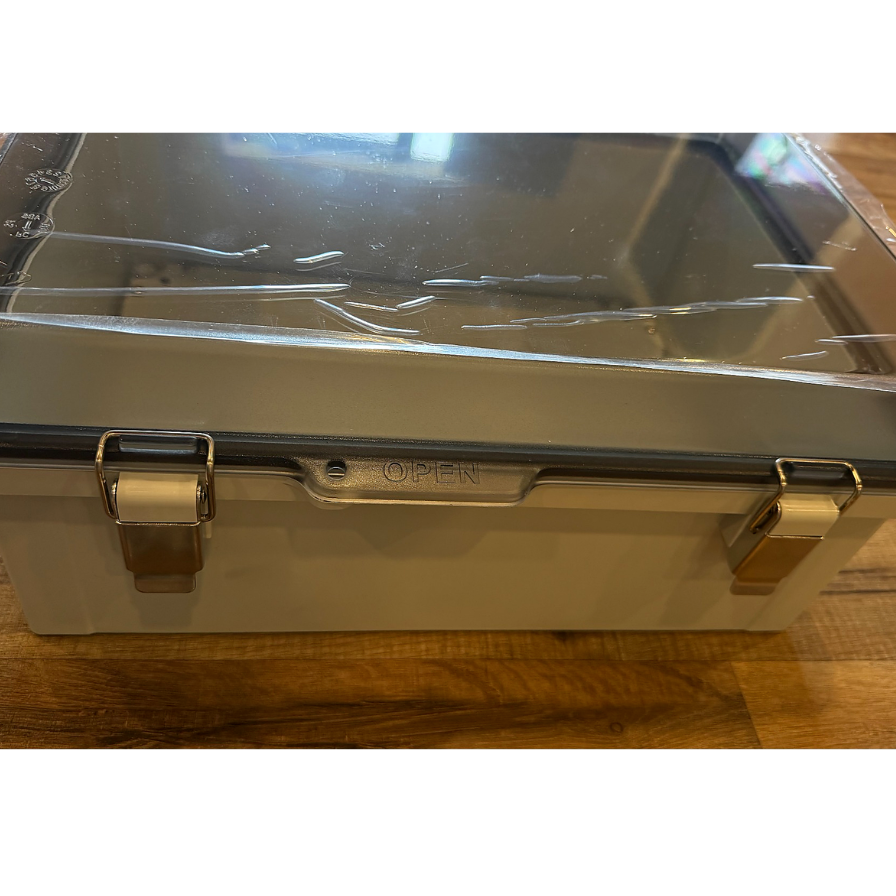

Lockable hinged access – Hinged door design (lock not included) allows easy maintenance while supporting a lockable configuration to help protect internal components; lock not included, allowing installers to choose appropriate hardware for residential or commercial applications.

Flexible installation versatility – Field-drilled, surface-mount enclosures allow electricians to customize cable entry points and layout, while line-voltage wiring is supported with electrician-supplied liquid-tight conduit and connectors for a cleaner installation approach.

  • MPN: 151590A / 334318A
  • Compatibility: Outdoor sauna main control modules, digital controllers, keypads, and low-voltage control wiring
  • Part Type: Waterproof enclosure kit set (small + large)

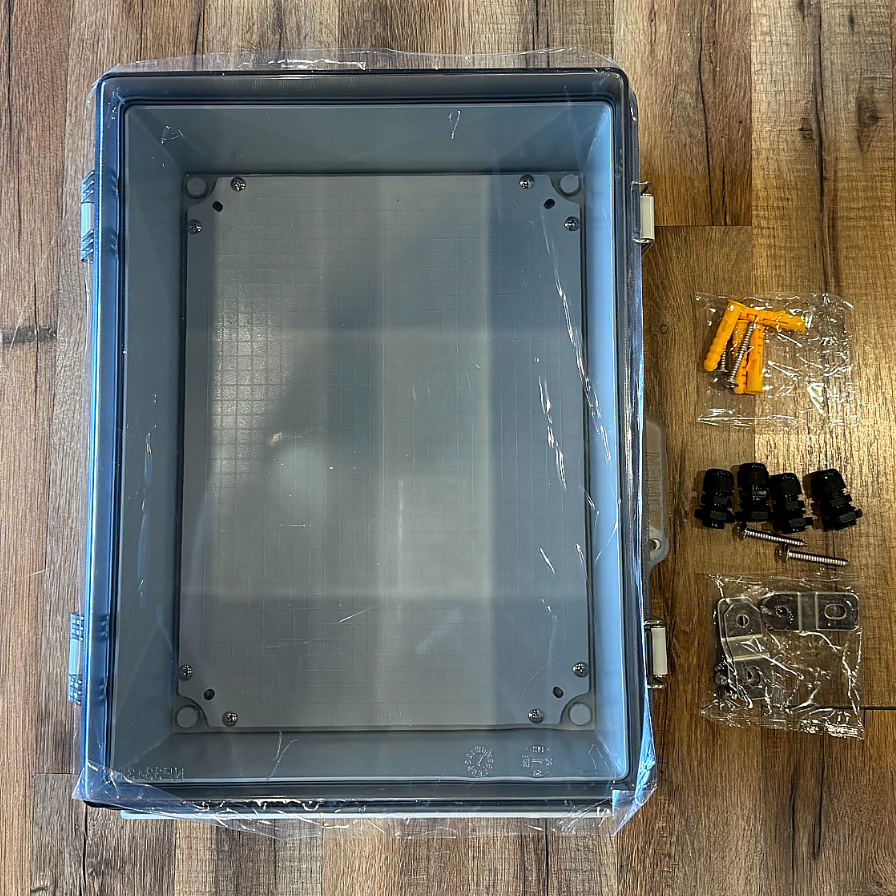

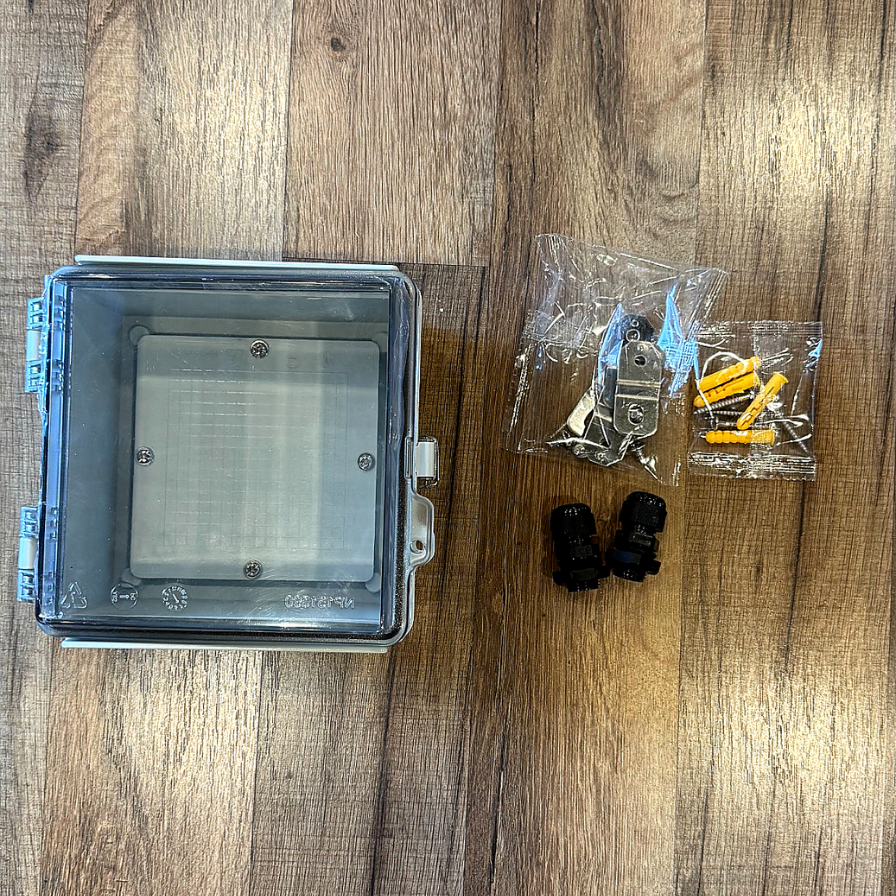

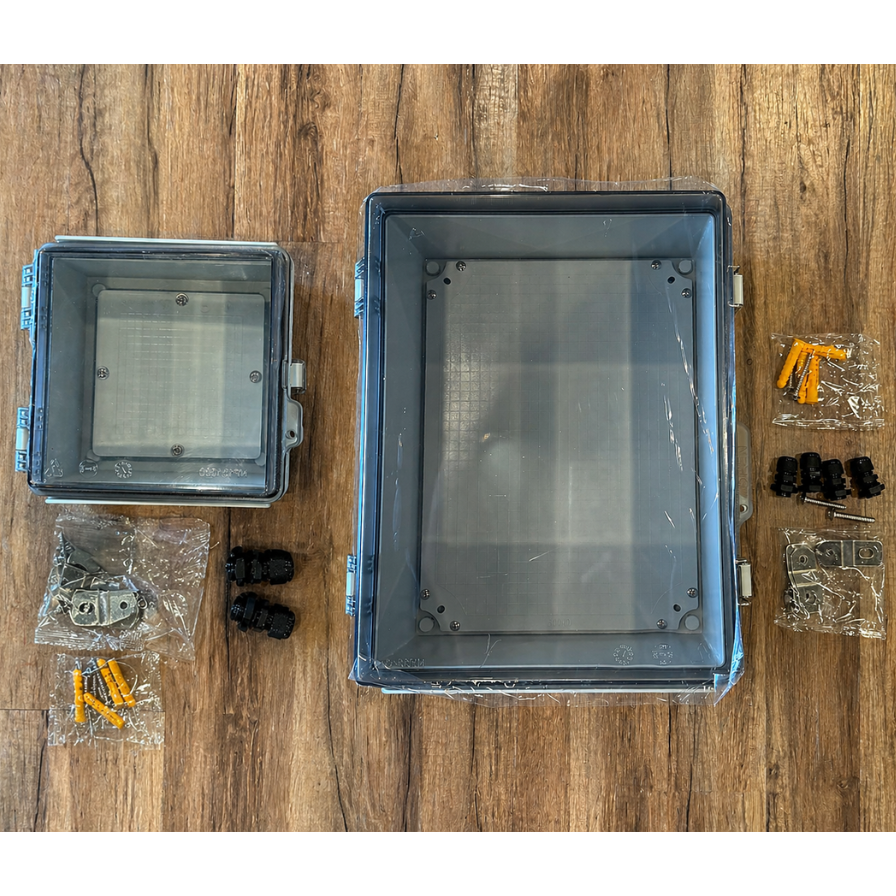

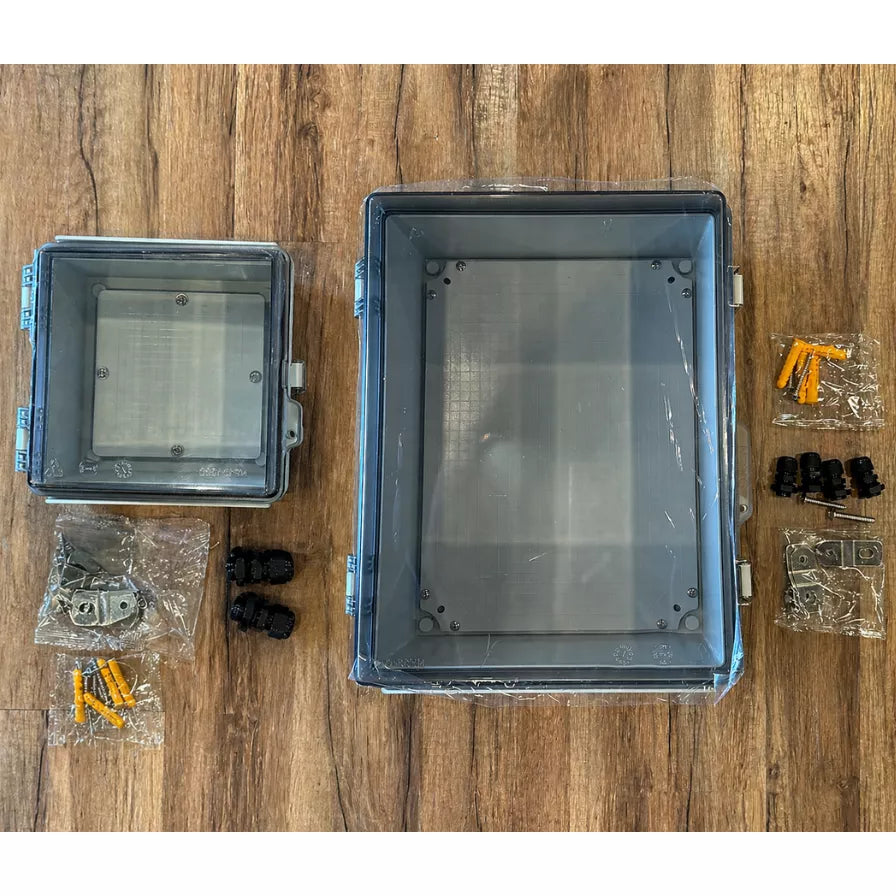

  • What’s Included: 1 × small waterproof enclosure with hinged lid, 1 × large waterproof enclosure with hinged lid, 6 × NPT 3/8" IP68 cable glands, O-rings and locknuts, metal mounting brackets, screws, wall anchors, blank enclosures for field drilling
  • Material: Polycarbonate (PC)
  • Color: RAL7035 (Light Gray)
  • Door Type: Hinged single door, lockable (both enclosures)
  • Mounting Plate: Plastic (small enclosure), optional (large enclosure)
  • Sealing Gasket: Polyurethane
  • Insulation Class: Class II (Total Insulation)
  • Protection Rating: IP67-rated enclosure, IK10 impact resistance (both enclosures)
  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -40°F to 248°F

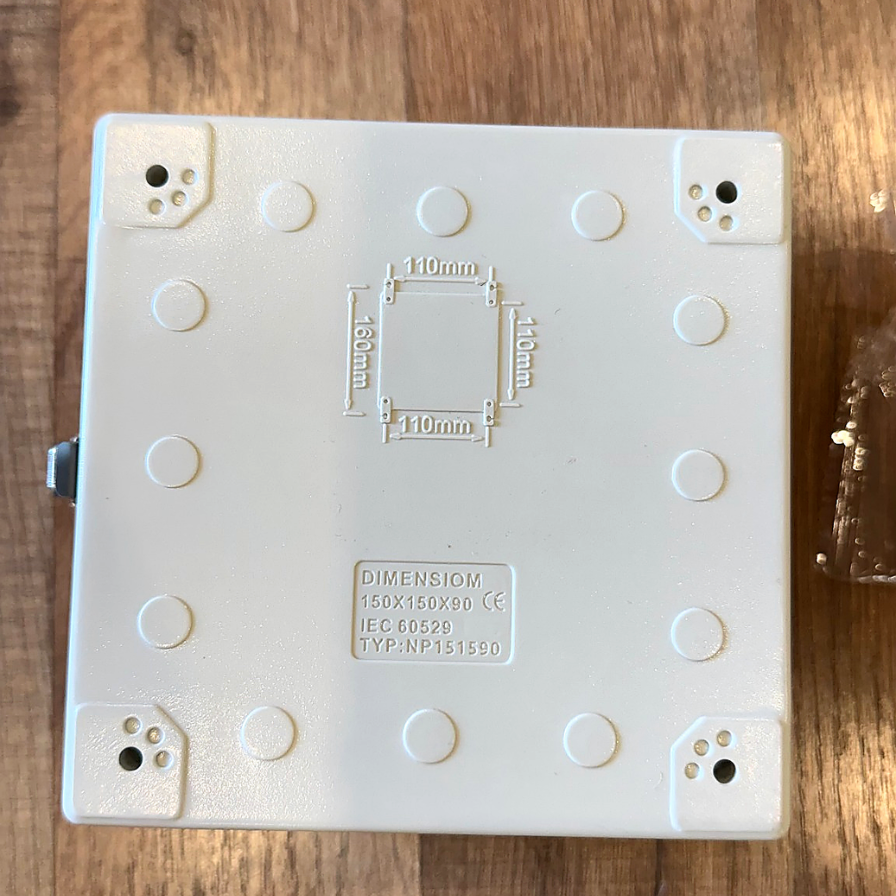

  • Dimensions (W × D × H): Small: 5.91" × 3.54" × 5.91"; Large: 13" × 7.09" × 16.93"

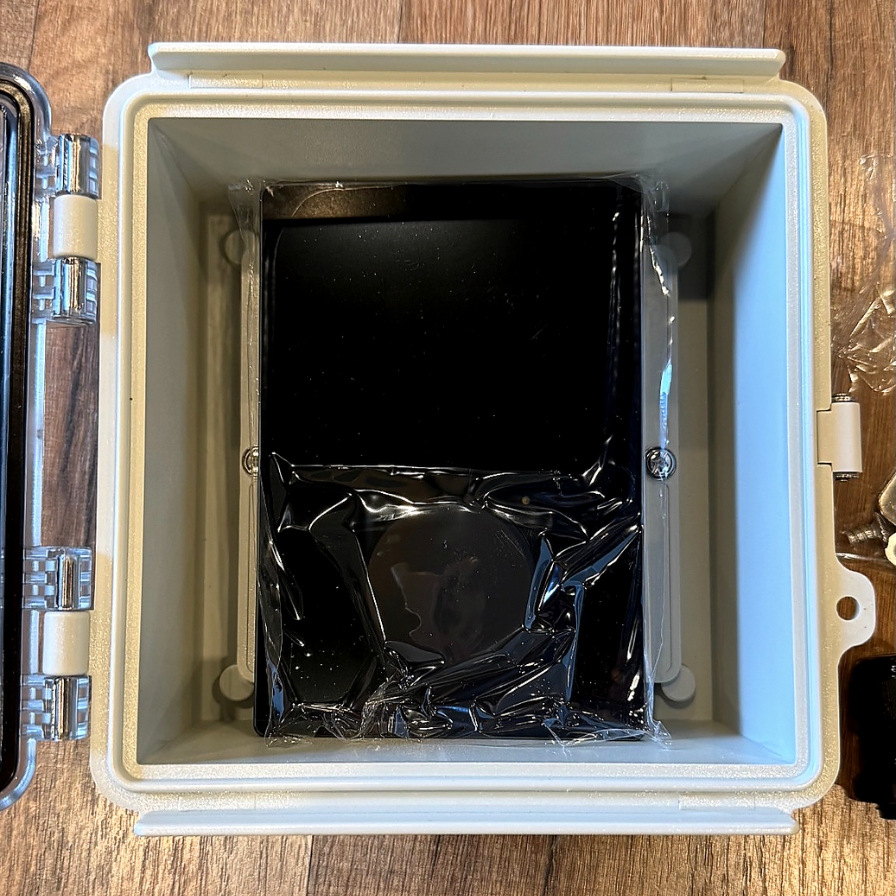

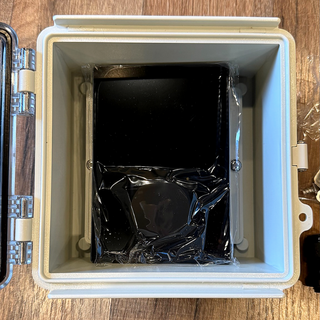

  • Internal Mounting Plate Area (Small): 3.94" × 4.33"

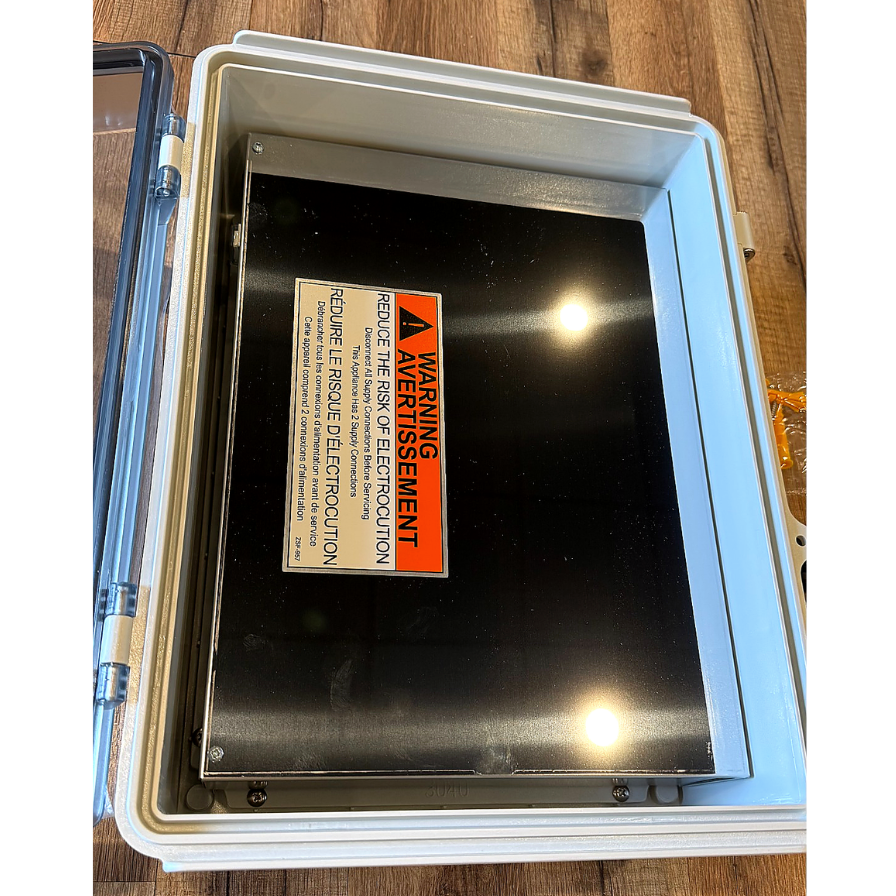

  • Internal Dimensions (Large): 16.34" × 12.40"
  • Connections: NPT 3/8" IP68 cable glands for low-voltage wiring (4–8 mm cable range)

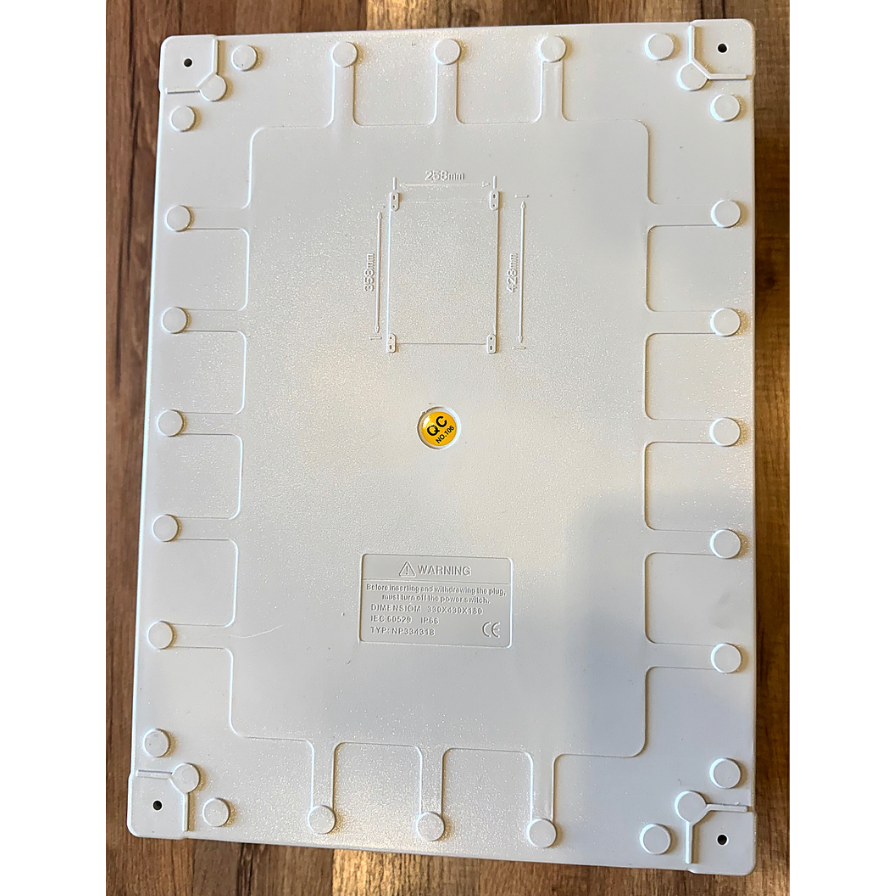

  • Installation: Surface mount, wall-mounted, pole-mounted, DIN rail compatible; field drilling required by licensed electrician
  • Certifications: IEC 60529 (IP67), IEC 62262 (IK10), RoHS 2.0
  • Operation: Final weather resistance depends on the proper installation of cable glands and conduit fittings

Outdoor Sauna Control Enclosure Set for Main Module & Controller

SKU: SP-151590A-334318A
$199.00
