Heritage Sauna® The Host Bundle — Lux Belvedere, Artico Plunge & Outdoor Shower Bundle

• External Dimensions: 196.9" W × 82.7" D × 100.4" H
• Internal Floor Area: ≈ 111 sq. ft.
• Capacity: Up to 7 People
• Weight: ≈ 2094 lbs
• Exterior Material: Shou Sugi Ban (Charred Spruce)
• Interior Material:Spruce walls with thermo aspen benches
• Bench Material: Thermo Aspen
• Roofing: Black Bitumen Tiles (Durable/Classic)
• Door: 8mm thick Black Planibel glass for front window and door
• Glazing: Black-Tinted Tempered Safety Glass
• Heater Compatibility: Suitable for Electric (9kW+ recommended)
• Warranty: 1-Year Limited – see Limited Warranty & Return Summary in Resources

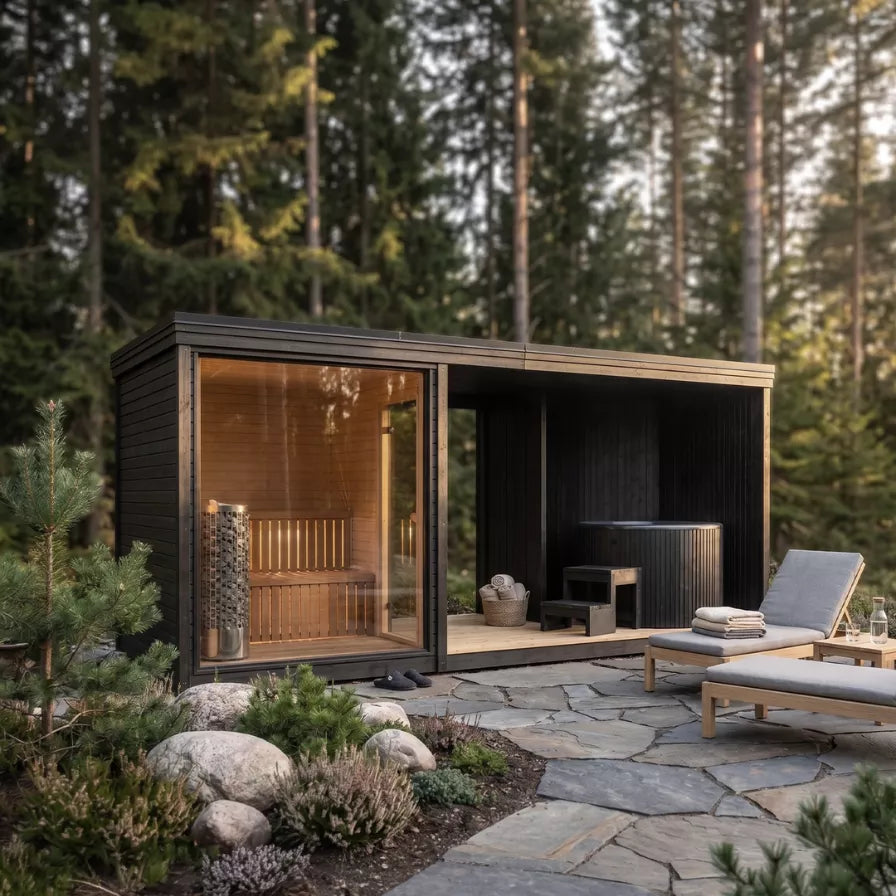

The Heritage Lux Belvedere Air is a premium, large sauna that ships in two crates. Please be advised:

• Oversized Shipment: One pallet exceeds 16 feet in length.
• Equipment Needed: Customers must have access to a loading dock or a forklift with extended forks at the delivery site to unload the vehicle.
• No Liftgate: Because of the pallet's length, the delivery truck cannot use a standard liftgate to lower the item to the ground.

• Compatibility: Residential and commercial cold plunge installations

• Part Type: Cold Plunge Tub

• What's Included: Artico plunge vessel, Shou Sugi Ban exterior, fitted protective cover, matching entry steps, chiller connection preparation

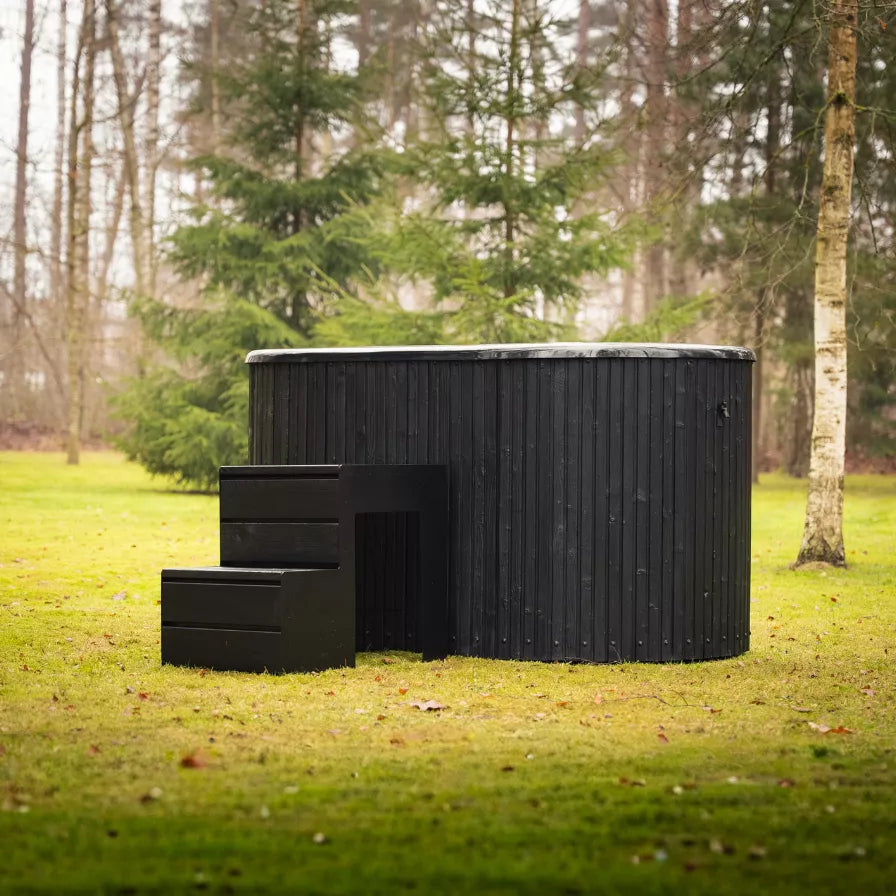

• Model: Lux Artico Plunge | Heritage Sauna® Architectural Series

• Optional Chiller: Heritage Sauna® 1HP Cold Plunge Chiller with Cooling & Heating. Power Supply: 100–125V. Noise Level: 60 decibels.

• Capacity: 2 people

• Tank Capacity: 185 gallons

• Exterior Dimensions: 74.8" L × 51.1" W × 40.1" H

• Interior Dimensions: 66.9" × 43.3" (oval), 39.4" deep, with stepped bench depths at 10.2" and 13.0"

• Weight: 353 lbs

• Shipping Dimensions (W × D × H): 47.2" × 98.4" × 59.1"

• Material: Shou Sugi Ban (charred wood), black fiberglass insert. Entry steps constructed from metal and Shou Sugi Ban wood.

• Installation: Plug-and-plunge setup


• Brand: Heritage Sauna®

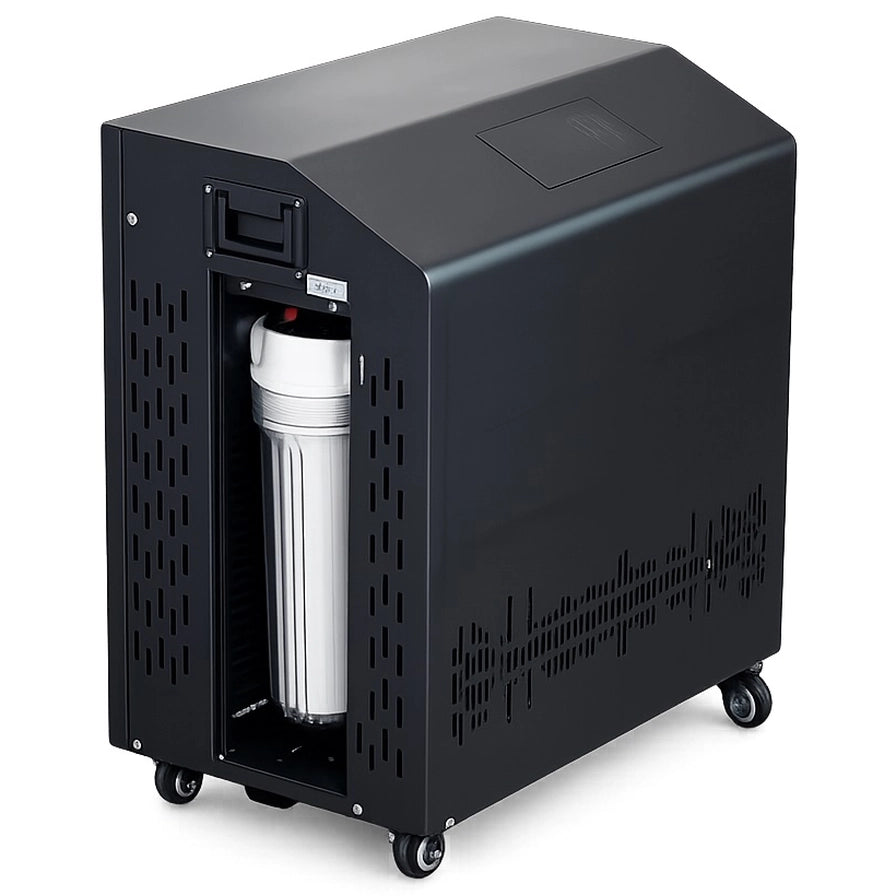

• Model: HTG-1HP-Chiller-Black
• Product Type: 1HP Cold Plunge Chiller with Cooling & Heating
• Intended Use: Residential & Commercial
• Color: Black
• Construction: Steel
• Power Source: Electric
• Power Supply: 100-125V
• Input Power: 940W
• Compressor Power: 735W
• Cooling Capacity: 2,405W
• Heating Capacity: 3,600W
• Temperature Range: 37–108°F adjustable
• Refrigerant: R32
• Circulating Pump: Built-in self-priming system
• Filtration: External filter system with 2 filter elements
• Water Care: Ozone generator and UV support
• Controls: On-unit display; iOS and Android Wi-Fi app control
• Flow Rate: 528 gallons per hour
• Noise Level: 60 decibels
• Plug Type: USA plug
• Product Dimensions: 21.3" L × 15.7" W × 21.7" H
• Net Weight: 79 lb
• Certifications: CE, ETL
• Warranty: 12 months

• Brand: HUUM
• Product Name: CORE 10.5kW Black Electric Sauna Heater
• Product Type: Electric Sauna Heater
• Part Type: Floor-Mounted Electric Sauna Heater
• Power Output: 10.5kW (240V) / 7.9kW (208V)
• Recommended Sauna Room Size: 354–566 cubic feet (240V) / 265–424 cubic feet (208V)
• Available Voltages: Dedicated 208V and 240V models available
• Voltage Configuration: Separate 208V and 240V versions; not dual-voltage or field-convertible
• Phase: Single Phase
• Amperage: 43.75A (240V) / 37.98A (208V)
• Required Circuit Breaker: 50A
• Recommended Wire Size: 8 AWG copper, heat-resistant cable required; crimped cable ends mandatory
• Control Requirement: Must be used with a certified control unit featuring a timer; maximum 6-hour operation for residential use; automatic restart not permitted
• Control Compatibility: Compatible with HUUM UKU Local, Wi-Fi, and Glass control systems (sold separately)
• Installation: Hardwired installation by a licensed electrician required; floor anchoring required
• Bench Integration: Full-length bench embedding supported
• Bench Installation Requirement: Top of heater must not be lower than the sauna bench surface
• Airflow Requirement: Air circulation beneath the sauna bench must remain unobstructed
• Minimum Side Clearance: 2"
• Stone Capacity: 66 lbs
• Recommended Stone Size: 2"–4" diameter
• Sauna Stones: Sold separately
• Material: Metal casing
• Finish: CORE Black matte metal
• Top Rim Cover: Black
• IP Rating: IPX4 (splash-resistant)
• Ventilation Requirement: Sauna must be properly insulated and ventilated
• Dimensions: 15.2" W × 15.2" D × 32.7" H
• Weight: 41.9 lbs
• Compatibility: Residential and light commercial sauna rooms
• What's Included: HUUM CORE Electric Heater, adjustable leveling legs (4), floor anchoring brackets, installation and operation manual
• Certification: SGS Listed
• Warranty: 3-year limited residential warranty; 1-year limited commercial warranty (heating elements excluded)

• MPN: HUU-H2004012
• Compatibility: HUUM electric sauna heaters up to 11kW (up to 18kW with extension box)
• Part Type: Sauna Controller Kit
• Temperature Range: 104–230°F (40–110 °C)
• Power Supply: 240 V 2~
• Heating Time Options: 3, 6, 12, 18 hours
• Control Options: Control panel and HUUM mobile app
• What’s Included: CLASSIC sauna control panel, cable (118″ / 3 m), main module, temperature sensor, door sensor, sensor cables (197″+197″ / 5+5 m)
• Certification: SGS Certified (UL 60335-1 / CAN/CSA C22.2 No. 60335-1:16), cert. no. SGSNA/20/SUW/00061X

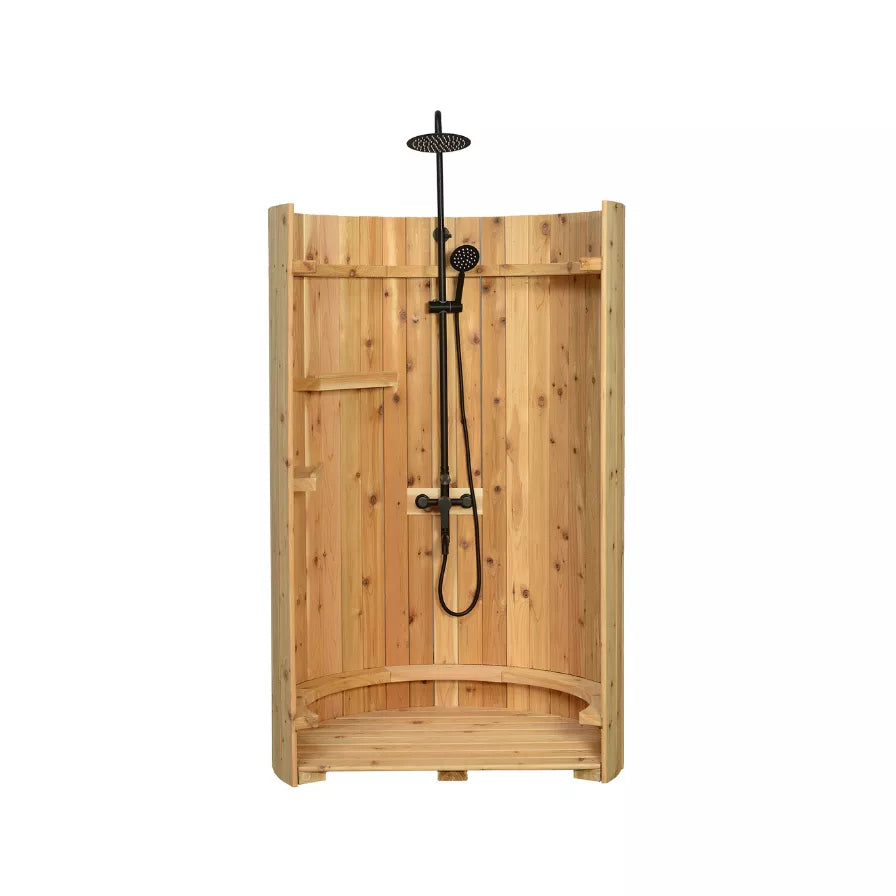

• Material: Western Red Cedar
• Fixture Material: Stainless steel with brass plumbing fittings, available in Polished and Onyx (Matte Black) finish
• Weight: 78 lbs
• Enclosure Height: 67"
• Outside Diameter: 42"
• Inside Diameter: 40-1/4"
• Shower Head Height (Lowered): 72"
• Shower Head Height (Extended): 84"
• Floor Section Size: 41" × 32" × 3"
• Shower Shipping Size: 69" × 20" × 10"
• Floor Shipping Size: 42" × 33" × 3"
